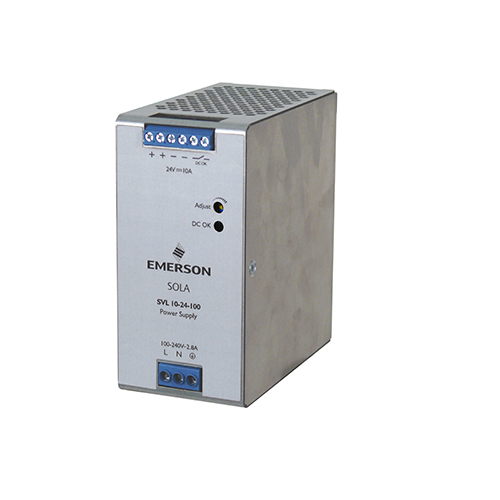

SHD SVL1024100 240W 24V DIN PS 85-2
$96.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hevi-Duty
Mfg Catalog # SVL1024100
North Coast Part # 1337523
SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 10A, Max. Power: 240W, Frequency Rating: 50/68Hz, Single Phase, DIN Rail Mounting

Categories

Overview

UPC 78347287324
GTiN 00783472873241
Length 4.63 in
Width 2.36 in
Type SVL Essential Din Rail Series
Material Metal
Applications Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;
Height 4.87 in
Cable Size Input Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors; Output Connector size range: 16-12 AWG (1.5-3.3 mm2) for solid conductors
Wattage 240 Watt
Efficiency 88 % typ
Family Brand Name SolaHD
Enclosure To be installed in an enclosure
Sub Brand Sola
