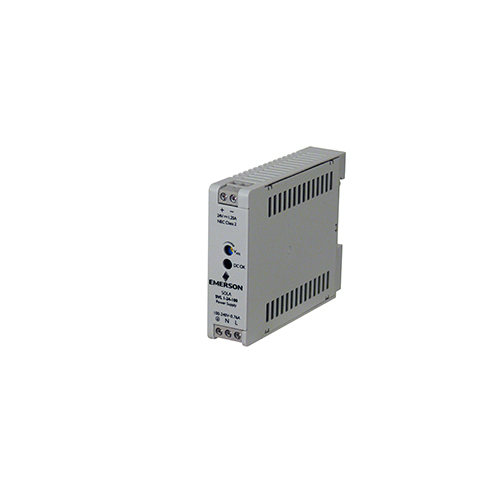

SHD SVL124100 30W 24V DIN PS 85-264
$38.98/ea
In Stock | 1 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hevi-Duty
Mfg Catalog # SVL124100
North Coast Part # 1337519
SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 1.25A, Max. Power: 30W, Frequency Rating: 50/61Hz, Single Phase, DIN Rail Mounting

Categories

Overview

UPC 78347287318
Item Long Description SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 1.25A, Max. Power: 30W, Frequency Rating: 50/61Hz, Single Phase, DIN Rail Mounting
GTiN 00783472873180
Length 3.52 in
Width 0.82 in
Type SVL Essential Din Rail Series
Material Plastic
Applications Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;
Height 2.95 in
Cable Size Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors
Wattage 30 Watt
Efficiency 88 % typ
Family Brand Name Emerson Electric
Enclosure To be installed in an enclosure
Sub Brand Sola
