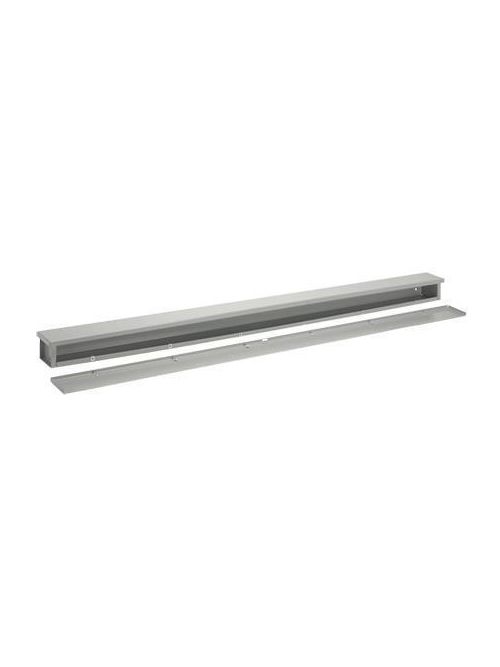

Hoffman A101072RT 10 x 10 x 72 Inch NEMA 3R 14 Gauge Plated Steel Wire Trough
$460.03/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A101072RT
North Coast Part # 601185

Features

  • Drip shield top and seam-free sides, front, and back
  • Slip-on removable cover
  • Embossed mounting holes on back of enclosure
  • Provision for padlocking
  • No gasketing or knockouts
  • 16 or 14 gauge plated steel

Accessories

  • Touch-Up Paint (ATPPY61)

Specifications

  • Bulletin Number: F40PT
  • Material: Steel
  • Model Code: 43039
  • Ship Wt. Std. Pkg. (lbs): 75.0
  • Interchangeable: False
  • Catalog Number: A101072RT
  • A in.: 10
  • B in.: 10
  • C in.: 72
  • Gauge: 14
  • Standards: UL 870 Listed; File No. E27524; Raintight || cUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight || NEMA/EEMAC Type 3R || IEC 60529, IP32

Overview

UPC 78351043039
GTiN 00783510430399
Width 10 in
Size 10.00x10.00x72.00 in
Type Wiring Trough, NEMA Type 3R
Material Steel
Applications Available in a range of sizes, this wiring trough meets basic functionality requirements for applications subjected to moisture.
Depth 72 in
Height 10 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,UL 870 Listed; File No. E27524; Raintight,NEMA/EEMAC Type 3R,IEC 60529, IP32
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
