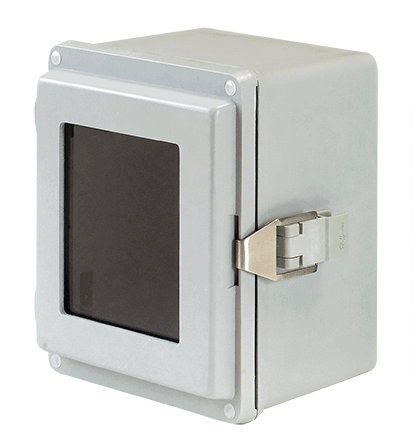

Hoffman A1066JFGQRPWR 10 x 6 x 6 Inch Light Gray Fiberglass NEMA 4X Enclosure Hinge Cover
$399.94/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1066JFGQRPWR
North Coast Part # 547492

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges. Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail. Attached with Type 316 stainless steel screws. A Type 316L stainless steel padlock hasp is furnished with each enclosure.
  • Sealing washers are furnished with enclosure

Notes

  • Purchase panels separately. Optional stainless steel, aluminum and composite material panels available for most sizes.
  • For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With Hoffman’s products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes

Specifications

  • Bulletin Number: A50
  • Material: Fiberglass
  • Model Code: 41300
  • Ship Wt. Std. Pkg. (lbs): 16.0
  • Interchangeable: False
  • Catalog Number: A1066JFGQRPWR
  • A in.: 10
  • B in.: 6
  • C in.: 6
  • Description: Window Cover, Quick Release
  • Window Size M x N in.: 6.55 x 4.00
  • Number of Latches: 2
  • Inside Dimensions A x B x C in.: 9.50 x 6.00 x 5.53
  • Steel Panel: A8P6
  • Aluminum Panel: A8P6AL
  • Panel Size D x E in.: 6.75 x 4.88
  • Mounting G x H in.: 8.75 x 4.00
  • Overall L x W in.: 10.00 x 7.39
  • F in.: 5.00
  • J in.: 4.63
  • K in.: 1.25
  • V in.: 0.25
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; || File No. E61997 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 3R, 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351041300
GTiN 00783510413002
Width 6 in
Size 9.50x6.00x5.53 in
Type Screw- or Hinge-Cover with Quick-Release Latch, Type 4X
Material Fiberglass
Applications Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
Depth 6 in
Height 10 in
Standard NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,Enclosure Flammability Evaluated Per UL 508A,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,File No. E61997,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,CSA File No. 42186: Type 3R, 4, 4X, 12,Window Flammability Evaluated Per UL 508A,IEC 60529, IP66
Capacity 315 cu in
Family Brand Name Hoffman
Number of Latches 2
Sub Brand Hoffman
