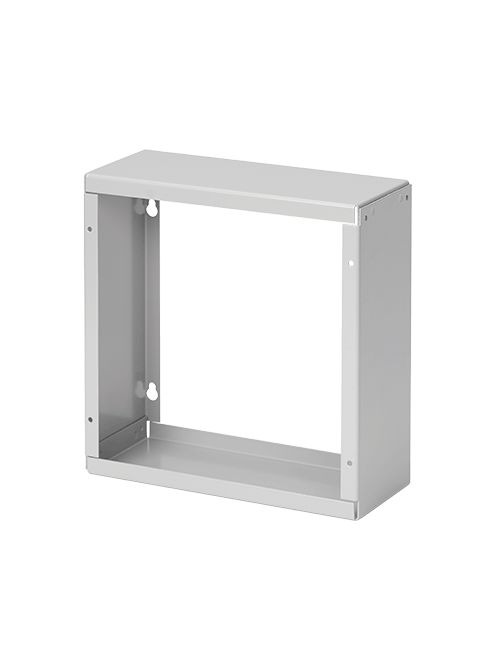

Hoffman A1084SUG 10 x 8 x 4 Inch Galvanized Steel Screw Cover Pull Box Extender
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$53.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1084SUG
North Coast Part # 1826981

Features

  • Unique keyhole screw slots for easy installation
  • Plated steel screws included to mount to pull box
  • Compatible with Type 1 Pull Box accessories
  • Maintains grounding between main enclosure and extender
  • Extenders are finished with paint over plated surfaces

Specifications

  • Height (H) (inch): 10
  • Height (H) (millimetre): 254
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Style: Galvanized
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.61

Categories

Overview

UPC 78351030143
Item Long Description The Pull Box Extender, Type 1, is used in commercial and general industrial applications that previously required a custom sized pull box, or to create additional wiring space for existing pull box installations. It is installed by simply sliding the product on a pullbox, using a common hole pattern, cover and hardware, making it a time saving solution.
GTiN 00783510301439
Width 8 in
Material Conductive Steel
Depth 102 mm
Height 10 in
Family Brand Name Hoffman
Finish Galvanized
Color Gray
Thickness 1.61 mm
Style Galvanized
