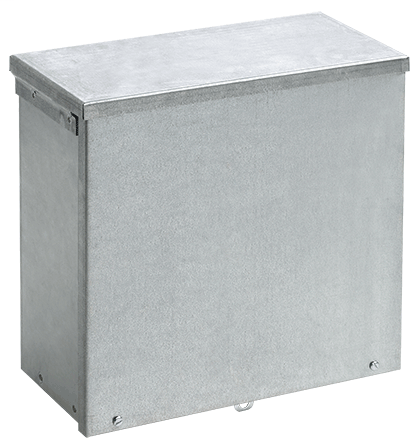

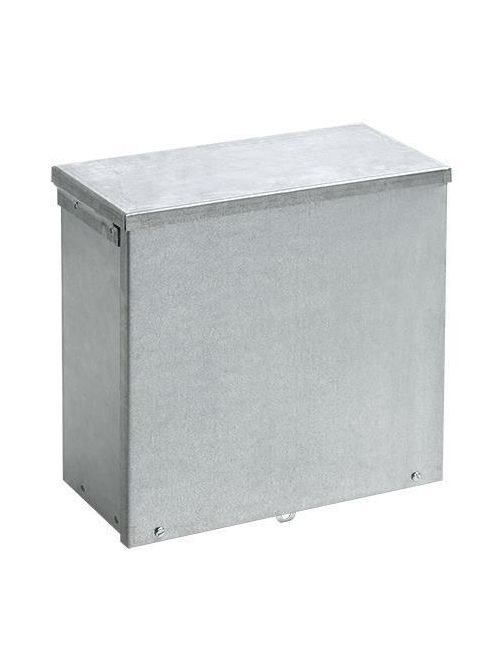

NVENT HOF A10R108GVNK 3R Screw Cove
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$93.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A10R108GVNK
North Coast Part # 597618

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Door handles on larger sides (body style C; see table)
  • Embossed mounting holes on back of enclosure
  • See table for knockout pattern
  • Provision for padlocking

Specifications

  • Height (H) (inch): 10
  • Height (H) (millimetre): 254
  • Width (W) (inch): 10
  • Width (W) (millimetre): 254
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Mounting (H) (inch): 2.25
  • Mounting (H) (millimetre): 57
  • Body Style: A
  • Mounting (J) (inch): 1.06
  • Mounting (J) (millimetre): 27
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Color: Unpainted
  • Finish: Galvanized
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 10.00x10.00x8.00 in
  • Knockouts: No

Related Products

Accessory

  • AS050

Categories

Overview

UPC 78351016971
Item Long Description Galvanized Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.
GTiN 00783510169718
Width 10 in
Size 10.00x10.00x8.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Material Steel
Applications Power Distribution
Depth 203 mm
Height 10 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL50, 50E Listed; Type 3R; File No. E27525
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Galvanized
Thickness 1.52 mm
