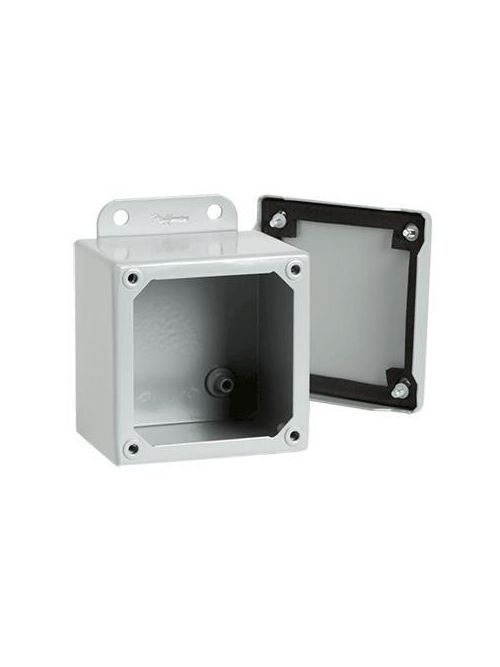

SCREW COVER 12
$193.90/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A121010SC
North Coast Part # 1165541

Features

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Bonding provision on cover
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
  • External wall-mounting brackets for easy installation

Notes

  • Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Accessories

  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A51SC
  • Material: Steel
  • Model Code: 29263
  • Ship Wt. Std. Pkg. (lbs): 48.0
  • Interchangeable: False
  • Finish: ANSI 61
  • UL Listed: 50, 50E
  • Catalog Number: A121010SC
  • A in.: 12
  • B in.: 10
  • C in.: 10
  • K in.: 0.67
  • F in.: 9.53
  • Panel Size D x E in.: 10.75 x 8.88
  • Gauge: 14
  • J in.: 9.51
  • Conductive Panel: A12P10G
  • V in.: 0.25
  • T in.: 9.00
  • Overall L x W in.: 13.50 x 10.28
  • Mounting G x H in.: 12.75 x 8.00
  • Y in.: 0.62
  • Panel: A12P10
  • Standards: UL 50, 50E Listed; Type 12, 13; File No. E27525 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27525 || UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC: Type 12 and 13 || CSA, File No. 42184: Type 12 || IEC 60529, IP65

Categories

Overview

UPC 78351029263
GTiN 00783510292638
Finish ANSI 61
Width 10 in
Material Steel
Depth 10 in
Height 12 in
Family Brand Name Hoffman
Gauge 14 AWG
Size 12.00x10.00x10.00 in
Color Gray
Type Screw Cover
Applications Controls and Drives
