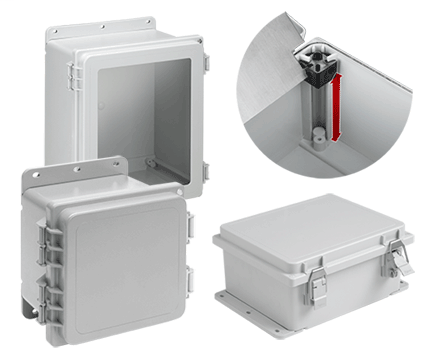

Hoffman A12106PHCW 12.08 x 10.08 x 6.35 Inch Polyester NEMA 4X Enclosure and Window

Features

• Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
• Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
• Resists cracking and provides excellent impact resistance
• Lighter-weight than fiberglass
• Recyclable
• Easy, dustless in-field modifications using standard tools
• Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
• Removable snap-hinge cover allows for easy access to cover and body for modifications
• Molded layout grid on inside of body and solid covers assists with component mounting
• Molded-in embosses for rear panel mounting
• Optional cover screws included with all models
• Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
• Scratch-resistant polycarbonate windows
• Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)

Notes

• Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.

Accessories

• Adjustable Panel Block Kit
• Panels for Junction Boxes
• Hol-Sealers Non-Metallic Hole Seals
• Aluminum Swing-Out Panels
• Stainless Steel Latches (Padlockable)
• Hinge Retainers

Specifications

• Bulletin Number: PCR
• Material: Polyester
• Model Code: 17088
• Ship Wt. Std. Pkg. (lbs): 6.4
• Interchangeable: False
• Catalog Number: A12106PHCW
• A in.: 12.08
• B in.: 10.09
• C in.: 6.38
• L in.: 14.08
• F in.: 6.32
• G in.: 13.34
• H in.: 8.56
• Panel Size D x E in.: 10.75 x 8.88
• J in.: 5.91
• M in.: 10.25
• N in.: 8.25
• W in.: 11.23
• Aluminum Panel: A12P10AL
• Steel Panel: A12P10
• Cover Type: Window
• Standards: UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only) || IEC 60529, IP66
