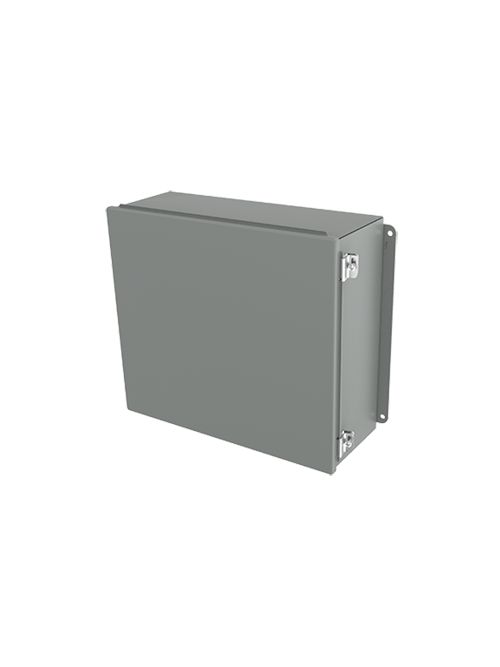

Hoffman A1210CHS 12 x 10 x 5 Inch 14 Gauge Steel NEMA 12 Junction Box Hinge Cover
$159.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1210CHS
North Coast Part # 544984

Features

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Screw-down door clamps
  • Bonding provision on door
  • External wall-mounting brackets for easy installation
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Notes

  • Reference the Specification Sheet for Popular Accessories.

Accessories

  • Clamp Kits
  • Fast-Operating Clamp-Cover Junction Box Clamp
  • Lock Kit for Clamp Cover Junction Boxes
  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing Out Panel Kit

Specifications

  • Bulletin Number: A51CH
  • Material: Mild Steel
  • Model Code: 55520
  • Ship Wt. Std. Pkg. (lbs): 46.0
  • Interchangeable: False
  • Finish: ANSI 61
  • UL Listed: 50, 50E
  • Catalog Number: A1210CHS
  • A in.: 12
  • B in.: 10
  • C in.: 5
  • K in.: 0.56
  • F in.: 4.53
  • Panel Size D x E in.: 10.75 x 8.88
  • Gauge: 14
  • J in.: 4.62
  • Conductive Panel: A12P10G
  • V in.: 0.25
  • T in.: 9.00
  • P in.: 1.00
  • Overall L x W in.: 13.50 x 10.94
  • Mounting G x H in.: 12.75 x 8.00
  • Y in.: 0.62
  • Panel: A12P10
  • Standards: UL 50, 50E Listed; Type 12, 13; File No. E27567 || cUL Listed per CSA 22.2 No. 94; Type 12, 13; File No. E27567 || UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA 22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12 and 13 || CSA, File No. 42184: Type 12 || IEC 60529, IP65

Overview

UPC 78351055520
GTiN 00783510555207
Finish ANSI 61
Width 10 in
Size 12.00x10.00x5.00 in
Color Gray
Type Continuous Hinge with Clamps, Type 12
Material Mild Steel
Applications This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.
Depth 5 in
Height 12 in
Standard NEMA/EEMAC Type 12 And 13,CSA,UL 50,File No. E27567,UL 508A Listed,50E Listed,File No. E61997,Type 12,CUL Listed Per CSA 22.2 No. 94,File,13
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
