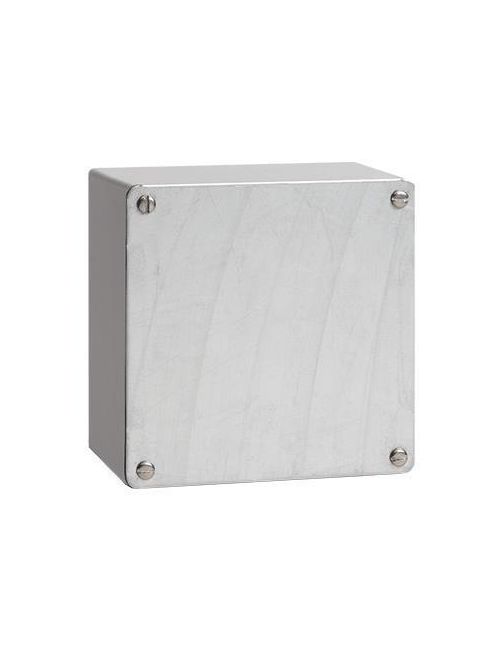

Hoffman A12126GSC 12 x 12 x 6 Inch 14 Gauge Galvanized Steel NEMA 3 Screw Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$186.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A12126GSC
North Coast Part # 603844

Features

  • Captivated stainless steel cover screws thread into sealed wells
  • Oil-resistant gasket and adhesive
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Grounding stud on inside back of box

Specifications

  • Height (H): 305 millimetre
  • Width (W): 305 millimetre
  • Depth (D): 152 millimetre
  • Protection Rating: NEMA Type 3
  • Material: Mild Steel
  • NEMA Rating: 3 Weather-resistant
  • Cover Screw Quantity: 8
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Body Thickness: 1.9 millimetre
  • Color: Unpainted
  • Door Thickness: 2.66 millimetre
  • Finish: Galvanized

Overview

UPC 78351056150
GTiN 00783510561505
Width 12 in
Size 12.00x12.00x6.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Material Steel
Applications Power Distribution
Depth 6 in
Height 12 in
Standard 12,CSA,CUL Listed Per CSA C22.2 No 94,File 42184: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3 And 12 (except For Mounting Provisions),Type 3,UL 508A Listed
Number of Screws 8
Family Brand Name Hoffman
Cover Gauge 12
Body Gauge 14
Sub Brand Hoffman
Finish Galvanized
