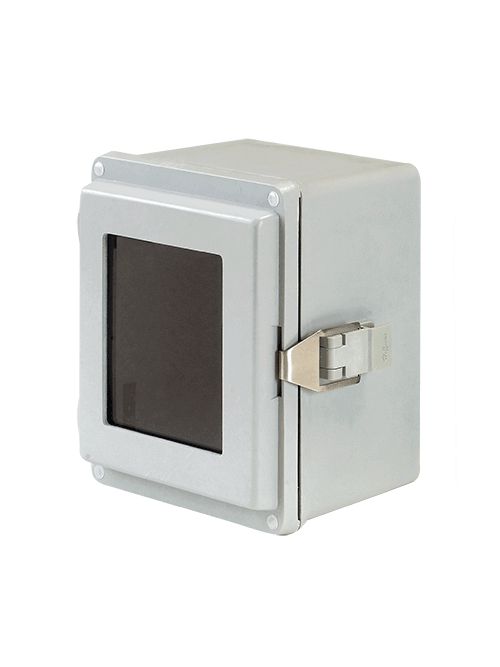

Hoffman A1287JFGQRPWR 12 x 8 x 7 Inch Enclosure
Product image thumbnail 0
Product image thumbnail 1
$532.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1287JFGQRPWR
North Coast Part # 544992

Features

  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
  • A Type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure

Specifications

  • Height (H): 305 millimetre
  • Width (W): 203 millimetre
  • Depth (D): 178 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Fiberglass
  • Usage: Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Cover Style: Window Cover
  • Latch Style: Quick Release Latch
  • Panel Size (D x E): 222 x 175 millimetre
  • Window Size (M x N): 8.25 x 5.84 inch
  • Aluminum Panel: A10P8AL
  • Latch Quantity: 2
  • Inside Dimensions (A x B x C): 292 x 203 x 166 millimetre
  • Steel Panel: A10P8
  • Mounting (G x H): 273 x 152 millimetre
  • Overall Dimensions (L x W): 305 x 239 millimetre
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Thickness (T): 3 millimetre

Related Products

Accessory

  • ASPB05075NM

Overview

UPC 78351041310
GTiN 00783510413101
Width 8 in
Size 11.50x8.00x6.53 in
Color Light Gray
Type Wall-Mount, Fiberglass and Thermoplastic
Material Fiberglass
Applications Used in Harsh Environments
Depth 6.53 in
Height 11-1/2 in
Standard CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Capacity 601 cu in
Family Brand Name Hoffman
Number of Latches 2
Cover Type Hinged with Quick-Release Latch
Sub Brand Hoffman
Finish Matte
Thickness 3 Millimetre mm
