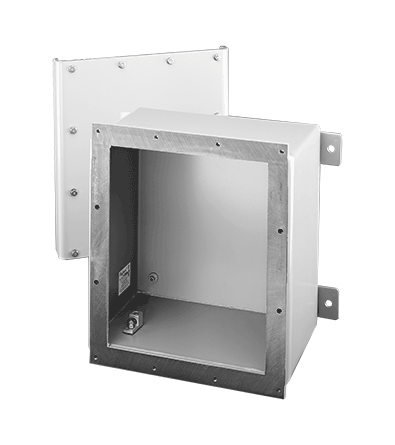

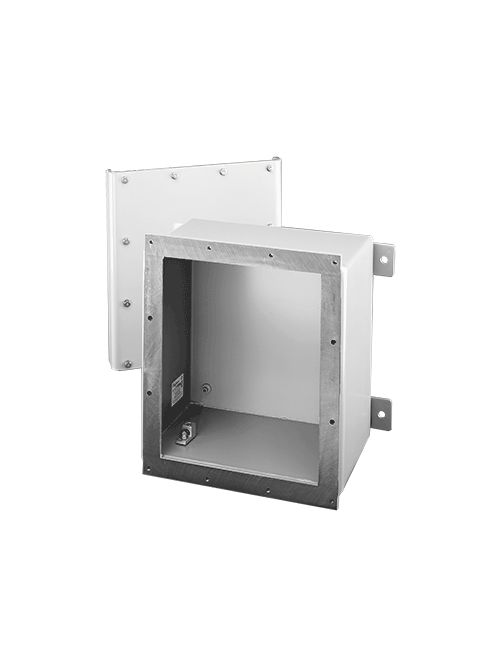

Hoffman A12D106 12 x 10 x 6 Inch Steel NEMA 9 Hazardous Location Enclosure

Features

• 0.19-in. (5-mm), .25-in. (6-mm) and .38-in. (10-mm) steel plate
• Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm). (Class II enclosures must have minimum of 3.50 full threads at all conduit entrances. NEMA requires conduit entrances to be in top and/or bottom of enclosure. Tapped holes for conduit should have tapered pipe threads.)
• Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
• Heavy duty cover hinges on enclosures when “A” is 20.00 in. (508 mm) or more
• Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
• Weldnuts or collar studs provided for mounting optional panel

Accessories

• Panels for Type 1 Enclosures and Small Type 3R Enclosures
• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
• Terminal Block Kit Assembly for Junction Boxes Overview
• Terminal Block Kit Assembly for Type 4, 12 and 13 Enclosures Overview

Specifications

• Bulletin Number: A9
• Material: Steel
• Model Code: 32080
• Ship Wt. Std. Pkg. (lbs): 47.0
• Interchangeable: False
• Finish: Painted Steel
• Catalog Number: A12D106
• A in.: 12
• B in.: 10
• C in.: 6
• F in.: 1.50
• Panel Size D x E in.: 10.25 x 8.25
• Q in.: 11.25
• Overall L x W in.: 14.50 x 12.88
• Mounting G x H in.: 9.75 x 11.62
• Panel: A12N10P
• I in.: 3.50
• Number of Mounting Holes: 4
• Standards: UL Class II Division 1 and 2 Group E, F and G locations || UL File No. E67456 || NEMA/EEMAC Type 9 || CSA certified for Class II Division 1 and 2 Group E, F and G locations || IEC 60529, IP60 || CSA File No. 42186
