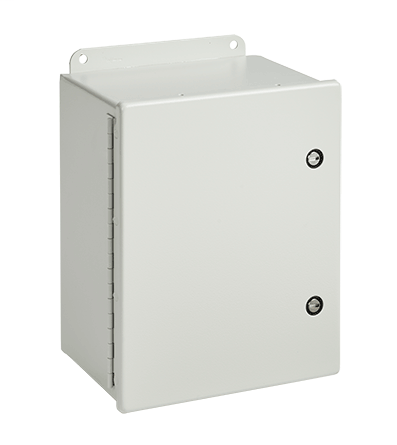

Hoffman A14128CHFL 14 x 12 x 8 Inch Gray 14 Gauge Steel NEMA 4 Enclosure Hinge Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$317.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A14128CHFL
North Coast Part # 549128

Features

  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bonding provision on door
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Quarter-turn slotted latches
  • Seamless foam-in-place gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

Specifications

  • Height (H) (inch): 14
  • Height (H) (millimetre): 356
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel Size (inch): 12.75 x 10.88
  • Panel Size (millimetre): 324 x 276
  • Conductive Panel: A14P12G
  • Panel: A14P12
  • Mounting (G x H) (inch): 14.75 x 10.00
  • Mounting (G x H) (millimetre): 375 x 254
  • Overall Dimensions (L x W) (inch): 15.50 x 12.41
  • Overall Dimensions (L x W) (millimetre): 394 x 314
  • Latch Quantity: 2
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 14.00x12.00x8.00 in

Related Products

Accessory

  • A14P12
  • A14P12AL
  • A14P12G
  • APLKJIC
  • APLKJIC6SS
  • AJCDFK
  • A14P12SS
  • A12JTMA
  • A14P12C
  • A12JS
  • A14JTMA
  • A12JBNS
  • A14JS
  • A14JBNS
  • AS050

Categories

Overview

UPC 78351014892
Item Long Description This enclosure provides the convenience of quarter-turn latching with an aesthetic, easy-to-maintain light gray textured finish.
GTiN 00783510148928
Finish Powder Coated
Width 12 in
Size 14.00x12.00x8.00 in
Color 7035 Gray
Type Hinge Cover
Material Painted Steel
Applications Controls and Drives
Depth 203 mm
Height 14 in
Standard CUL Listed Per CSA C22.2 No. 94 Listed; Type 4, 12; File No. E61997,IEC 60529, IP 66,NEMA/EEMAC Type 4 And 12,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Gauge 14 AWG
Number of Latches 2
Sub Brand Hoffman
Thickness 1.9 mm
