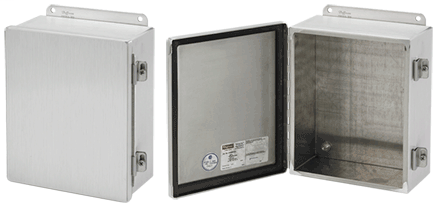

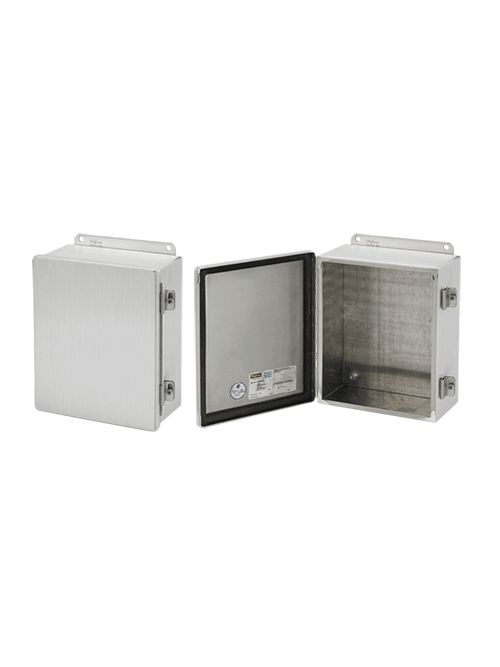

Hoffman A1412CHAL 14 x 12 x 6 Inch Aluminum NEMA 12 Enclosure Hinge Cover
$627.32/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1412CHAL
North Coast Part # 212024

Features

  • Type 5052 H-32 aluminum .080-in. (2-mm) thick
  • Seams continuously welded and ground smooth
  • Stainless steel screws and clamps secure cover
  • Cover removed by pulling stainless steel continuous hinge pin
  • Oil-resistant gasket
  • Weldnuts furnished for mounting optional panels and terminal block kits

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
  • Catalog numbers ending in "S" are hinged on short side.

Accessories

  • Industrial Corrosion Inhibitors
  • Fast-Operating Clamp-Cover Junction Box Clamp
  • Lock Kit for Clamp Cover Junction Boxes
  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing-Out Panel Kit

Specifications

  • Bulletin Number: A51A
  • Material: Aluminum
  • Model Code: 56360
  • Ship Wt. Std. Pkg. (lbs): 11.6
  • Interchangeable: False
  • Catalog Number: A1412CHAL
  • A in.: 14
  • B in.: 12
  • C in.: 6
  • F in.: 5.50
  • Panel Size D x E in.: 12.75 x 10.88
  • J in.: 5.56
  • Conductive Panel: A14P12G
  • V in.: 0.25
  • T in.: 11.00
  • P in.: 3.00
  • Overall L x W in.: 15.50 x 12.94
  • Aluminum Panel: A14P12AL
  • Steel Panel: A14P12
  • Mounting G x H in.: 14.75 x 10.00
  • Y in.: 0.62
  • Standards: UL 50, 50E Listed; Type 12, 13; File No. E27567 || cUL Listed per CSA C22.2 No 94; Type 12, 13; File No. E27567 || NEMA/EEMAC Type 12, 13 || CSA File No. 42184: Type 12 || IEC 60529, IP65 ||

Overview

UPC 78351056360
GTiN 00783510563608
Width 12 in
Size 14.00x12.00x6.00 in
Type Continuous Hinge with Clamps, Type 12
Material Aluminum
Applications Lightweight enclosures protect components and controls in indoor applications.
Depth 6 in
Height 14 in
Standard CUL Listed Per CSA C22.2 No 94; Type 12, 13; File No. E27567,NEMA/EEMAC Type 12, 13,UL 50, 50E Listed; Type 12, 13; File No. E27567,IEC 60529, IP65,CSA File No. 42184: Type 12
