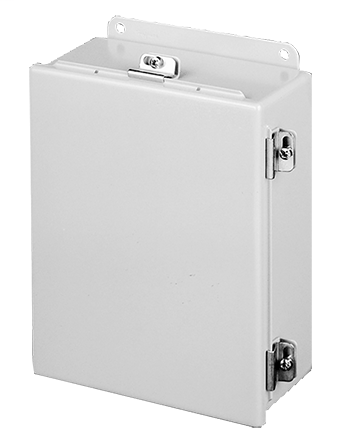

Hoffman A1412CHNF 14 x 12 x 6 Inch 14 Gauge Steel NEMA 4 Hinge Cover Junction Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$298.96/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1412CHNF
North Coast Part # 213526

Features

  • Seams continuously welded and ground smooth
  • Stainless steel screw-down clamps on three sides of door
  • Continuous hinge
  • Stainless steel hinge pin
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
  • Bonding provision on door
  • External wall-mounting brackets for easy installation

Specifications

  • Height (H) (inch): 14
  • Height (H) (millimetre): 356
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A14P12
  • Conductive Panel: A14P12G
  • Panel Size (D x E) (inch): 12.75 x 10.88
  • Panel Size (D x E) (millimetre): 324 x 276
  • Mounting (G x H) (inch): 14.75 x 10.00
  • Mounting (G x H) (millimetre): 375 x 254
  • Overall Dimensions (L x W) (inch): 15.50 x 12.94
  • Overall Dimensions (L x W) (millimetre): 394 x 329
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 14.00x12.00x6.00 in

Related Products

Accessory

  • A14P12
  • A14P12AL
  • A14P12G
  • AL23SS
  • APLKJIC
  • APLKJIC6SS
  • AL18
  • AJCDFK
  • A14P12SS
  • A12JTMA
  • A14P12C
  • A12JS
  • A14JTMA
  • A12JBNS
  • A14JS
  • A14JBNS
  • AS050

Overview

UPC 78351055750
Item Long Description A continuous hinge combined with stainless steel clamps on three sides provide environmental protection and security in indoor or outdoor applications.
GTiN 00783510557508
Finish Powder Coated
Width 305 mm
Size 14.00x12.00x6.00 in
Color Gray
Type Three Lock, Single Door
Material Steel
Applications For Indoor or Outdoor use
Mounting Type Wall
Depth 152 mm
Height 356 mm
Standard 12,13,50E Listed,CUL Listed Per CSA C22.2 No. 94,File No. E27567,File No. E61997,NEMA/EEMAC Type 4,Type 4,UL 50,UL 508A Listed
Family Brand Name Hoffman
Gauge 14 and 16
Cover Type Continuous Hinged with Clamp
Sub Brand Hoffman
Thickness 1.9 mm
