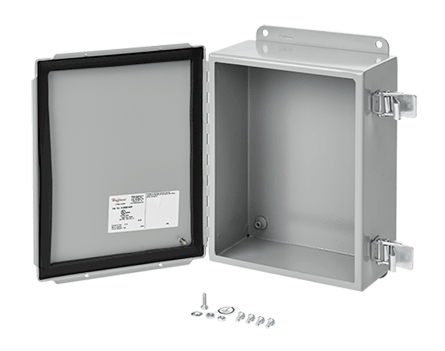

Hoffman A1412CHQR 14 x 12 x 6 Inch 14 Gauge Steel NEMA 12 Junction Box Hinge Cover
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$265.78/ea
In Stock | 3 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1412CHQR
North Coast Part # 213812

Features

  • Seams continuously welded and ground smooth
  • Continuous hinge
  • Bonding provision on door
  • Quick-release latches
  • External welded-on mounting brackets for easy installation
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits

Specifications

  • Height (H) (inch): 14
  • Height (H) (millimetre): 356
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A14P12
  • Conductive Panel: A14P12G
  • Panel Size (D x E) (inch): 12.75 x 10.88
  • Panel Size (D x E) (millimetre): 324 x 276
  • Mounting (G x H) (inch): 14.75 x 10.00
  • Mounting (G x H) (millimetre): 375 x 254
  • Overall Dimensions (L x W) (inch): 15.50 x 12.81
  • Overall Dimensions (L x W) (millimetre): 394 x 325
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 14.00x12.00x6.00 in

Related Products

Accessory

  • A14P12
  • A14P12AL
  • A14P12G
  • APLKJIC
  • APLKJIC6SS
  • AJCDFK
  • A14P12SS
  • A12JTMA
  • A14P12C
  • A12JS
  • A14JTMA
  • A12JBNS
  • A14JS
  • A14JBNS
  • AS050

Categories

Overview

GTiN 00783510568801
Finish Powder Coated
Width 305 mm
Size 14.00x12.00x6.00 in
Color Gray
Type Two Lock, Single Door
Material Steel
Applications Controls and Drives
Mounting Type Wall
Depth 152 mm
Height 356 mm
Standard 13,50E Listed,CUL Listed Per CSA C22.2 No. 94,File No. E27567,File No. E61997,IEC 60529,IP,NEMA Type 12 And 13,Type 12,UL 50,UL 508A Listed
Family Brand Name Hoffman
Gauge 14 and 16
Cover Type Continuous Hinged with Quick-Release Latches
Sub Brand Hoffman
Product UPC 78351056880
Thickness 1.9 mm
