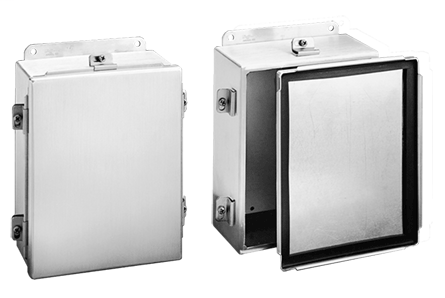

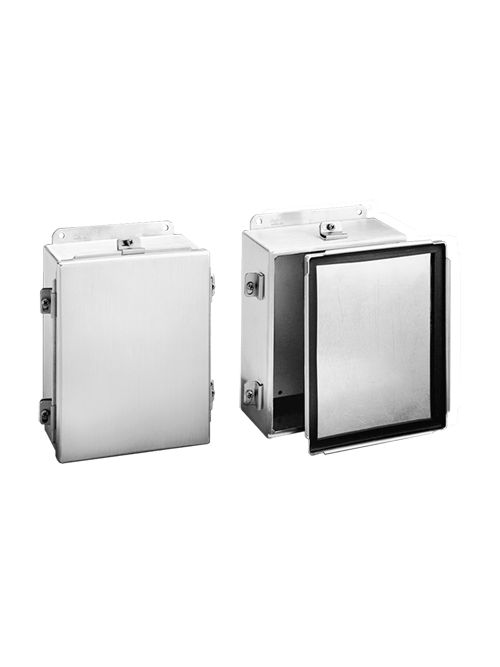

Hoffman A1412NFAL 14 x 12 x 6 Inch 5052 H-32 Aluminum NEMA 4X Clamp Cover Wall Mount Enclosure
$631.84/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A1412NFAL
North Coast Part # 70555

Features

  • Type 5052 H-32 aluminum, 0.080-in. (2-mm) thick
  • Seams continuously welded and ground smooth
  • Stainless steel screws and clamps on four sides of cover
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • Industrial Corrosion Inhibitors
  • Fast-Operating Clamp-Cover Junction Box Clamp
  • Panels for Junction Boxes
  • Junction Box and Wall-Mount Enclosure Swing-Out Panel Kit
  • Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

  • Bulletin Number: A51A
  • Material: Aluminum
  • Model Code: 56660
  • Ship Wt. Std. Pkg. (lbs): 12.2
  • Interchangeable: False
  • UL Listed: 50, 50E
  • Catalog Number: A1412NFAL
  • A in.: 14
  • B in.: 12
  • C in.: 6
  • F in.: 5.50
  • Panel Size D x E in.: 12.75 x 10.88
  • J in.: 5.50
  • M in.: 2.00
  • N in.: 3.00
  • Conductive Panel: A14P12G
  • V in.: 0.25
  • T in.: 11.00
  • Overall L x W in.: 15.50 x 13.38
  • Aluminum Panel: A14P12AL
  • Steel Panel: A14P12
  • Mounting G x H in.: 14.75 x 10.00
  • Y in.: 0.62
  • Standards: UL 50, 50E Listed; Type 3R, 4, 4X, 12; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E27525 || UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42184: Type 4, 4X, 12 || IEC 60529, IP66 ||

Overview

UPC 78351056660
GTiN 00783510566609
Finish Untreated
Width 305 mm
Size 14.00x12.00x6.00 in
Type Gangable, Single Door, Five Lock
Material Aluminum
Applications For Indoor, Outdoor
Mounting Type Wall
Depth 152 mm
Height 356 mm
Standard NEMA/EEM,4,12,CUL Listed Per CSA C22.2 No 94,UL 50,UL 508A Listed,Type 3R,4X,File No. E27525,File No. E61997,50E Listed
Family Brand Name Hoffman
Cover Type Clamp
Sub Brand Hoffman
