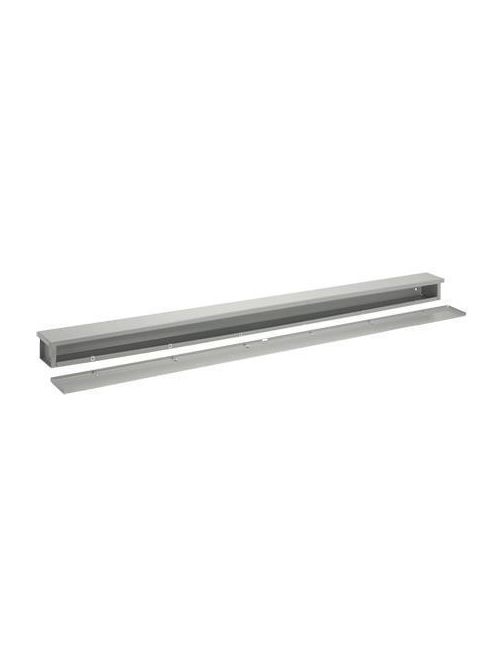

Hoffman A141472RT 14 x 14 x 72 Inch NEMA 3R 14 Gauge Plated Steel Wire Trough
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,118.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A141472RT
North Coast Part # 824925

Features

  • Drip shield top and seam-free sides, front, and back
  • Slip-on removable cover
  • Embossed mounting holes on back of enclosure
  • Provision for padlocking
  • No gasketing or knockouts

Specifications

  • Type: Trough
  • Height (H) (inch): 14
  • Height (H) (millimetre): 356
  • Width (W) (inch): 14
  • Width (W) (millimetre): 356
  • Depth (D) (inch): 72
  • Depth (D) (millimetre): 1,829
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Modification Services: Yes
  • Type Number: Type 3R
  • Wireway: Wiring Troughs
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 14.00x14.00x72.00 in
  • Depth: 72 in

Categories

Overview

GTiN 00783510133481
Finish Galvanized
Width 14 in
Size 14.00x14.00x72.00 in
Type Screw-Cover Wiring Trough, Type 3R
Material Steel
Applications Power Distribution
Depth 1,829 mm
Height 14 in
Standard CUL CSA C22.2 No. 26 Listed; File No. E27524; Raintight,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 870 Listed; File No. E27524; Raintight
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Product UPC 78351013348
Color Gray
Thickness 1.9 mm
