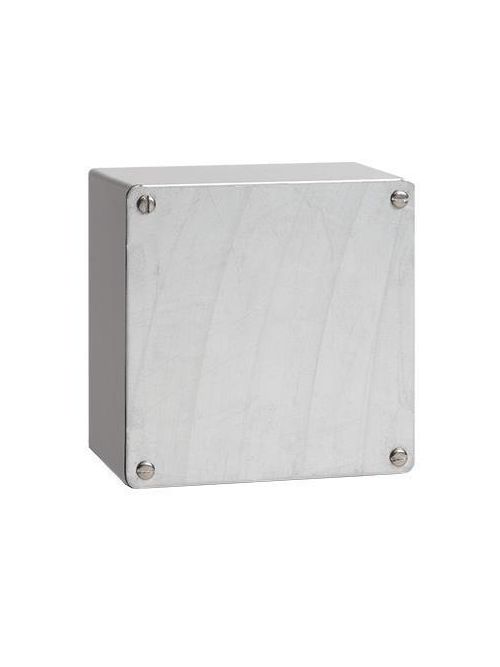

Hoffman A16126GSC 16 x 12 x 6 Inch Box Enclosure Screw Cover
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A16126GSC
North Coast Part # 603852


  • Captivated stainless steel cover screws thread into sealed wells
  • Oil-resistant gasket and adhesive
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Grounding stud on inside back of box
  • 14 or 12 gauge G-90 grade galvanized steel bodies
  • 12 or 10 gauge G-90 grade galvanized steel covers


  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Mounting Bracket Kit


  • Bulletin Number: A90GS
  • Material: Steel
  • Model Code: 56160
  • Ship Wt. Std. Pkg. (lbs): 16.62
  • Interchangeable: False
  • Catalog Number: A16126GSC
  • A in.: 16
  • B in.: 12
  • C in.: 6
  • Number of Cover Screws: 8
  • Cover Gauge: 12
  • Body Gauge: 14
  • Standards: UL 508A Listed; Type 3, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 12; File No. E61997 || NEMA/EEMAC Type 3 and 12 (except for mounting provisions) || CSA, File 42184: Type 4 and 12 || IEC 60529, IP66


UPC 78351056160
GTiN 00783510561604
Width 12 in
Size 16.00x12.00x6.00 in
Type Screw-Cover, Gasketed, Type 3
Material Steel
Applications Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
Depth 6 in
Height 16 in
Standard Type 3,IEC 60529,CSA,CUL Listed Per CSA C22.2 No 94,File No. E61997,12,UL 508A Listed,File 42184: Type 4 And 12,IP66,NEMA/EEMAC Type 3 And 12 (except For Mounting Provisions)
Number of Screws 8
Family Brand Name Hoffman
Cover Gauge 12
Body Gauge 14
Sub Brand Hoffman
