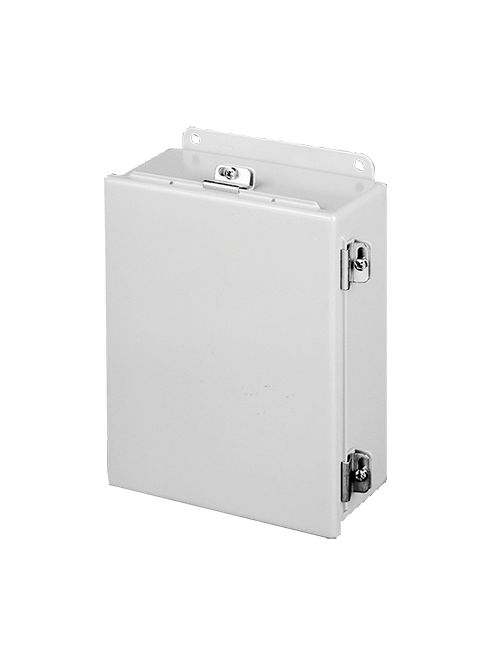

NVENT A16148CHNF Continuous Hinge w

Features

• 16 or 14 gauge steel
• Seams continuously welded and ground smooth
• Stainless steel screw-down clamps on three sides of door
• Continuous hinge
• Stainless steel hinge pin
• Oil-resistant gasket
• Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
• Bonding provision on door
• External wall-mounting brackets for easy installation

Notes

• Catalog numbers ending in “S’’ are hinged on short side.
• Purchase panels separately. Optional stainless steel, conductive, composite and aluminum panels are available for most sizes.

Accessories

• Industrial Corrosion Inhibitors
• Fast-Operating Clamp-Cover Junction Box Clamp
• Lock Kit for Clamp Cover Junction Boxes
• Panels for Junction Boxes
• Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
• Terminal Block Kit Assembly for Junction Boxes Overview

Specifications

• Bulletin Number: A51NF
• Material: Mild Steel
• Model Code: 29252
• Ship Wt. Std. Pkg. (lbs): 21.14
• Interchangeable: False
• Finish: ANSI 61
• UL Listed: 50, 50E
• Catalog Number: A16148CHNF
• A in.: 16
• B in.: 14
• C in.: 8
• K in.: 0.56
• F in.: 5.53
• Panel Size D x E in.: 14.75 x 12.88
• Gauge: 14
• J in.: 5.62
• M in.: 3.50
• N in.: 1.50
• Conductive Panel: A16P14G
• V in.: 0.25
• T in.: 13.00
• Overall L x W in.: 17.50 x 14.94
• Mounting G x H in.: 16.75 x 12.00
• Y in.: 0.62
• Panel: A16P14
• Standards: UL 50, 50E Listed; Type 4, 12, 13; File No. E27567 || cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E27567 || UL 508A Listed; Type 4, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42184: Type 4 and 12 || IEC 60529, IP66
