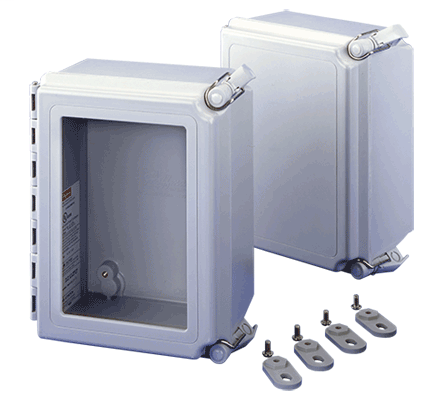

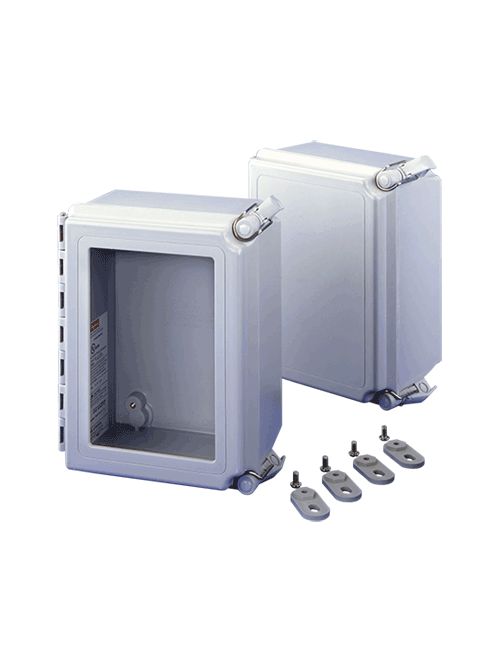

Hoffman A16148CHQRFGW 16 x 14 x 8 Inch Light Gray Fiberglass NEMA 4X Window Cover Enclosure
$383.79/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A16148CHQRFGW
North Coast Part # 211206

Features

  • Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
  • Fiberglass is easily punched, drilled, filed or sawed
  • Gasket assures water-tight and dust-tight seal
  • Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
  • Removable hinged cover attached to body with Type 316 stainless steel hinge pin
  • Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
  • Hinge pin and bail are corrosion-resistant Type 316 stainless steel
  • Padlock provisions included
  • Material is halogen-free

Notes

  • Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
  • For CALIFORNIA residents only - WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please note that by posting this Proposition 65 warning, we are notifying you that one or more of the Proposition 65 listed chemicals may be present in this product. With Hoffman’s products, the exposure to these chemicals may be of no significant risk to you, but out of caution and to ensure your well-being, we have elected to place this warning on our site to make sure our customers are informed. You can find more information at http://www.oehha.ca.gov/proposition-65/about-proposition-65.

Accessories

  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels for Junction Boxes
  • Threaded Panel Extenders
  • Quick-Release Latch Kit
  • Swing-Out Panel Kit

Specifications

  • Bulletin Number: A48
  • Material: Fiberglass
  • Model Code: 31300
  • Ship Wt. Std. Pkg. (lbs): 9.9
  • Interchangeable: False
  • Catalog Number: A16148CHQRFGW
  • A in.: 16
  • B in.: 14
  • C in.: 8
  • K in.: 2.08
  • F in.: 7.45
  • Panel Size D x E in.: 14.75 x 12.88
  • J in.: 6.23
  • M in.: 14.25
  • N in.: 12.25
  • T in.: 0.15
  • Type: Window Cover, Quick Release
  • Q in.: 15.56
  • P in.: 14.25
  • Overall L x W in.: 16.55 x 14.55
  • Steel Panel: A16P14
  • Mounting G x H in.: 16.94 x 12.00
  • U in.: 13.56
  • O in.: 12.25
  • Alum. Panel: A16P14AL
  • Standards: UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || Window flammability evaluated per UL 508A || NEMA/EEMAC Type 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12, 13 || IEC 60529, IP66

Categories

Overview

UPC 78351031300
GTiN 7.8351E+11
Finish Untreated
Width 356 mm
Size 16.00x14.00x8.00 in
Color 7035 Light Gray
Type Two Lock, Single Door
Material Fiberglass
Applications Controls and Drives; Corrosive Environments
Mounting Type Wall
Depth 203 mm
Height 406 mm
Family Brand Name Hoffman
Cover Type Continuous Hinged with Quick-Release Latches, Screws, Hinge Pin
Sub Brand Hoffman
