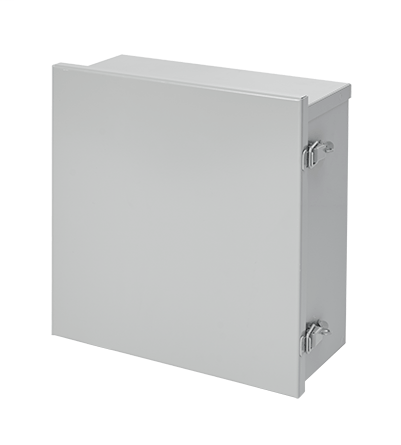

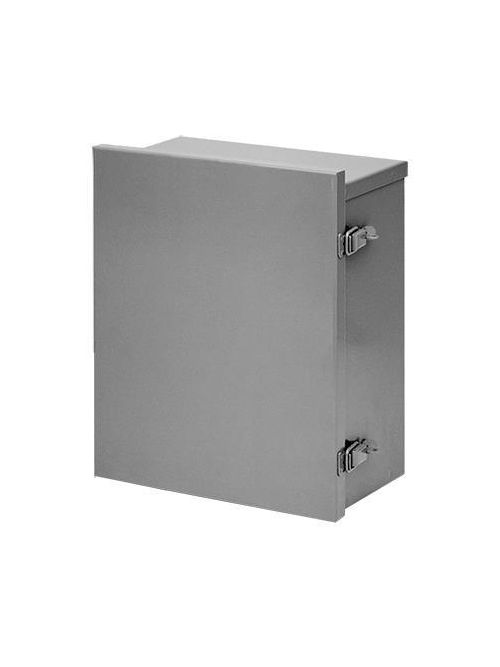

Hoffman A16R126HCLO 16 x 12 x 6 Inch 16 Gauge Galvanized Steel NEMA 3R Lift-Off Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$148.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A16R126HCLO
North Coast Part # 63938

Features

  • Drip-shield top and seam-free sides, front and back
  • Galvanized steel lift-off hinges with stainless steel pins
  • Provisions for padlocking on each draw pull catch
  • Embossed mounting holes on back of enclosure
  • Gasketing along top of door
  • No knockouts
  • Quick-release door latches
  • Enclosures are finished with paint over plated surfaces

Specifications

  • Height (H) (inch): 16
  • Height (H) (millimetre): 406
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 3R
  • Material: Mild Steel
  • NEMA Rating: 3R Weather-resistant, except dust
  • Panel: A14P12
  • Panel Size (D x E) (inch): 12.75 x 10.88
  • Panel Size (D x E) (millimetre): 324 x 276
  • Mounting (G) (inch): 17.12
  • Mounting (G) (millimetre): 435
  • Overall Dimensions (L x W) (inch): 18.12 x 13.25
  • Overall Dimensions (L x W) (millimetre): 460 x 337
  • Panel Mounting Kit: APMK3RLO16
  • Mounting Bracket Kit: AMFK3RLO16
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP32
  • Bracket Width (inch): 5
  • Bracket Width (millimetre): 127
  • Hole Spacing, Mounting Bracket (millimetre): 4
  • Hole Spacing, Mounting Bracket (inch): 102
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.52
  • Color: Gray
  • Color Code: ANSI 61
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Finish: Galvanized
  • Size: 16.00x12.00x6.00 in

Categories

Overview

UPC 78351038910
Item Long Description Drip-Shield Hinged Lift-Off Cover, Type 3R features a removable cover for easy mounting and access with padlock pull catch latches. It protects components in outdoor and other applications subject to rain, sleet, snow or dripping water.
GTiN 00783510389109
Width 12 in
Size 16.00x12.00x6.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 152 mm
Height 16 in
Standard CSA, File 42184: Type 3R,CUL Listed Per CSA C22.2 No 94; Type 3R File No. E27567,IEC 60529, IP32,NEMA/EEMAC Type 3R,UL 50, 50E Listed; Type 3R; File No. E27567
Family Brand Name Hoffman
Body Gauge 16
Sub Brand Hoffman
Finish Galvanized
Color Gray
Body Thickness 1.52 mm
