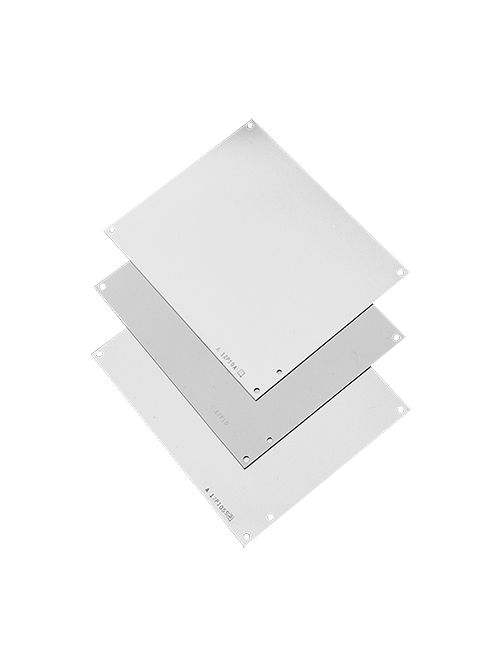

Hoffman A18P16G 16.75 x 14.88 Inch Galvanized Steel Enclosure Panel
$43.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A18P16G
North Coast Part # 603854

Specifications

  • Bulletin Number: Steel
  • Material: 26119
  • Model Code: 5.58
  • Ship Wt. Std. Pkg. (lbs): False
  • Interchangeable: Conductive steel
  • Catalog Number: A18P16G
  • A in.: 16.75
  • B in.: 14.88
  • Panel Size D x E in.: 16.75 x 14.88
  • X in.: .31
  • V in.: 0.25

Categories

Overview

UPC 78351026119
GTiN 00783510261191
Finish Primed
Width 378 mm
Size fits 18x16 in
Type Panels for Junction Boxes
Material Conductive Steel
Applications Steel panels are 14 gauge, finished with white polyester powder paint or with a conductive, corrosion-resistant coating. Stainless steel panels are 14 gauge Type 304 and have a commercial #2B finish which is protected on one side with a plastic film. Aluminum panels are 5052-H32 aluminum alloy 0.080-in. (2-mm) thick and protected on one side with a plastic film. Panel mounting hardware is furnished with all enclosures which accept these panels.
Height 425 mm
Family Brand Name Hoffman
Used With 18 x 16 in Junction Boxes
Sub Brand Hoffman
