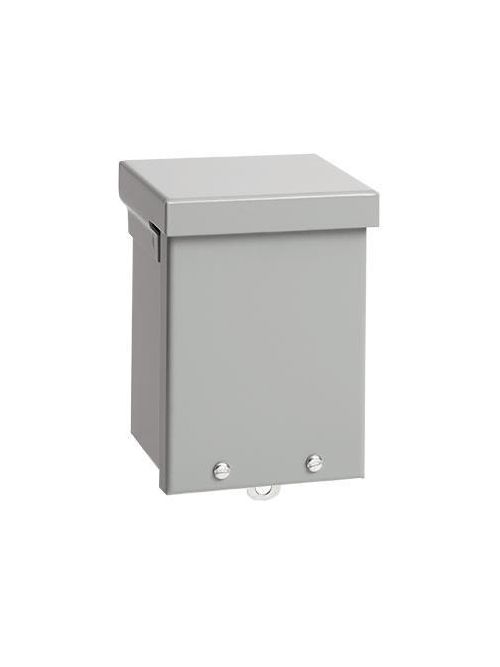

Hoffman A18R186 18 x 18 x 6 Inch Galvanized Steel NEMA 3R Screw Cover Enclosure
$189.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A18R186
North Coast Part # 151436

Features

  • Drip shield top and seam-free sides, front and back
  • Slip-on removable cover fastened with plated steel screws along bottom edge
  • Handles on larger sizes (see table)
  • Embossed mounting holes on back of enclosure
  • Knockouts in bottom of 16 and 14 gauge enclosures
  • Provision for padlocking
  • No gasketing
  • 16, 14 or 12 gauge galvanized steel

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Mounting Bracket Kit
  • Touch-Up Paint

Specifications

  • Bulletin Number: A90S3
  • Finish: ANSI 61
  • Material: Steel
  • Model Code: 38340
  • Ship Wt. Std. Pkg. (lbs): 23.0
  • Interchangeable: False
  • Catalog Number: A18R186
  • A in.: 18
  • B in.: 18
  • C in.: 6
  • Mounting H in.: 13.00
  • Knockout Pattern: A-B-C-D-E-F-G-H-I
  • Body Style: B
  • Mounting J in.: 1.12
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525 || NEMA/EEMAC Type 3R || IEC 60529, IP32
> View Substitutes (1)

Categories

Overview

UPC 78351038340
GTiN 00783510383404
Finish ANSI 61
Width 18 in
Size 18.00x18.00x6.00 in
Type Screw-Cover,Type 3R
Material Steel
Applications Use this enclosure with or without knockouts in outdoor applications as a wiring or junction box.
Depth 6 in
Height 18 in
Standard IEC 60529, IP32,UL 50, 50E Listed; Type 3R; File No. E27525,NEMA/EEMAC Type 3R,CUL Listed Per CSA C22.2 No 94; Type 3R; File No. E27525
Family Brand Name Hoffman
Sub Brand Hoffman
