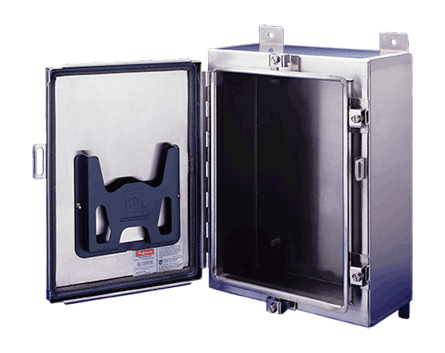

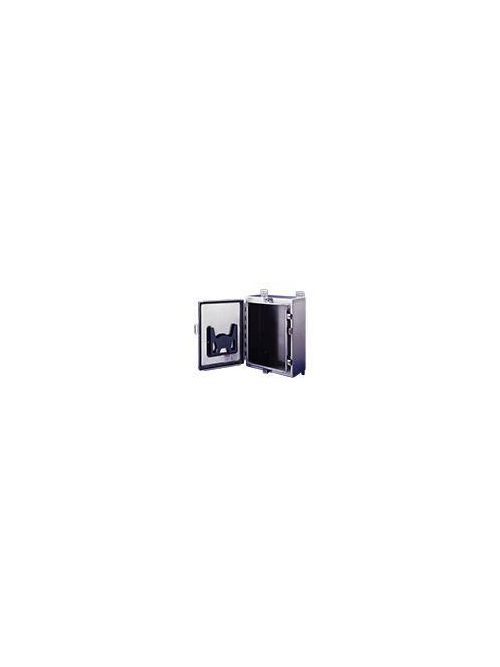

Hoffman A201606LPEMCSS 20 x 16 x 6 Inch 14 Gauge 304 Stainless Steel NEMA 4X Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,323.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A201606LPEMCSS
North Coast Part # 826037

Features

  • EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assemblies
  • Hasp and staple for padlocking
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Bonding provision on door; grounding stud on body

Specifications

  • Height (H) (inch): 20
  • Height (H) (millimetre): 508
  • Width (W) (inch): 16
  • Width (W) (millimetre): 406
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 17.00 x 13.00
  • Panel Size (D x E) (millimetre): 432 x 330
  • Data Pocket: Small
  • Conductive Steel Panel: A20P16G
  • Clamp Quantity: 4
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Size: 20.00x16.00x6.00 in

Related Products

Accessory

  • AS050SS
  • A20P16AL
  • A20P16G
  • A20P16
  • A20P16SS6
  • ACBK6SS
  • AFC412SS
  • APWK95NFSS
  • AWDH1612N4SS
  • APWK53NFSS
  • APWK116NFNM
  • APWK95NFNM
  • APWK53NFNM
  • APWK711NFSS
  • ALFSWD
  • ADSTOPKSS6
  • ACSHELF1212SS
  • AHCI240R
  • AHCI10E
  • AHCI60R
  • AHCI5E
  • AHCI238S
  • AHCI1DV
  • LEDA2S35
  • LEDA1S35
  • A16T
  • A20T
  • ANADFK
  • A16NTMA2
  • APE100
  • AS050
  • APE050
  • ATZ
  • A20NTMA2

Overview

UPC 78351025869
Item Long Description Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.
GTiN 00783510258696
Width 16 in
Size 20.00x16.00x6.00 in
Type Wall-Mount, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 152 mm
Height 20 in
Standard 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 1.98 mm
