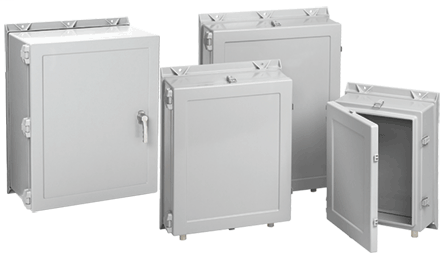

Hoffman A20H1606GQRLP 20.19 x 16.25 x 6 Inch Gray Fiberglass NEMA 4X Quick Release Latch Enclosure
$977.26/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A20H1606GQRLP
North Coast Part # 209974

Features

  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
  • Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
  • Seams are sealed; no holes or knockouts
  • Gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Data pocket is high-impact thermoplastic
  • Copper-flashed steel collar studs for mounting optional panels and terminal block kits

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories

Accessories

  • H2Omit Thermoelectric Dehumidifier
  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels
  • Stainless Steel Window Kits
  • Terminal Block Kit Assembly
  • Thermal Accessories

Specifications

  • Bulletin Number: Fiberglass
  • Material: 22610
  • Model Code: 19.26
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: A20H1606GQRLP
  • A in.: 20.19
  • B in.: 16.25
  • C in.: 6
  • Description: Quick-Release Latch
  • Panel Size in.: 17.00 x 13.00
  • Conductive Panel: A20P16G
  • Panel: A20P16
  • No. of latches: 4
  • G x H in.: 21.81 x 10.00
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Categories

Overview

UPC 78351022610
GTiN 00783510226107
Finish Untreated
Width 413 mm
Size 20.19x16.25x6.00 in
Color Gray
Type Four Lock, Single Door
Material Fiberglass
Applications Controls and Drives; Corrosive Environments
Mounting Type Wall
Depth 152 mm
Height 513 mm
Standard CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
Family Brand Name Hoffman
Number of Latches 4
Cover Type Hinged with 3-Point Latch or Quick-Release Latches
Sub Brand Hoffman
