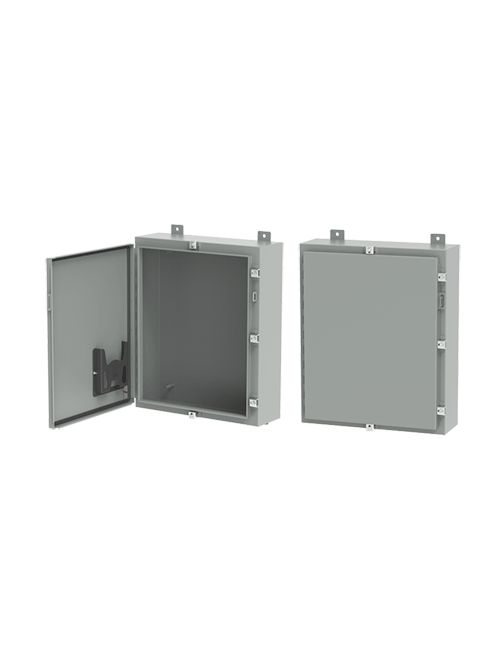

Hoffman A20H16ALP 20 x 16 x 6 Inch Gray 16 Gauge Steel NEMA 4 1-Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
$722.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A20H16ALP
North Coast Part # 153255

Features

  • Seams continuously welded and ground smooth
  • External wall-mounting brackets for easy installation
  • Formed external flanges around all sides of enclosure opening
  • Stainless steel screw-down clamps on three sides of door
  • Removable heavy gauge stainless steel continuous hinge pin
  • Removable door with continuous hinge for strength and ruggedness
  • Hasp and staple provided for padlocking
  • Data pocket is high-impact thermoplastic
  • Collar studs for mounting optional panels
  • Bonding provision on door

Specifications

  • Height (H): 508 millimetre
  • Width (W): 406 millimetre
  • Depth (D): 152 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Gray
  • Color Code: ANSI 61
  • Thickness (T): 1.52 millimetre
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A20P16
  • Conductive Panel: A20P16G
  • Panel Size (D x E): 432 x 330 millimetre
  • Clamp Quantity: 4
  • Data Pocket: Small
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66

Related Products

Accessory

  • A20P16G
  • A20P16
  • AFC412SS
  • ACBK6SS
  • APWK138NFSS
  • AWDH1612N4SS
  • APWK138NFNM
  • AWDH2016N4
  • APWK711NFSS
  • APWK53NF
  • AWDH1612N4
  • APWK53NFSS
  • APWK95NFNM
  • APWK95NF
  • APWK116NFNM
  • APWK715NFSS
  • APWK138NF
  • APWK95NFSS
  • APWK53NFNM
  • AWDH2016N4SS
  • APWK133NF
  • ALFSWD
  • ADSTOPK
  • GP168
  • AGP1618
  • GP126
  • AGP1218
  • GP128
  • DLGP618
  • DLGP610
  • GP166
  • AGP618
  • AHCI5E
  • AHCI238S
  • AHCI10E
  • AHCI60R
  • AHCI240R
  • AHCI1DV
  • A16T
  • LEDA2S35
  • LEDA1S35
  • A20T
  • A20NTMA2
  • APE050
  • AS050
  • APE100
  • A16NTMA2
  • ANADFK
  • ATZ

Overview

UPC 78351024330
GTiN 00783510243302
Finish Powder Coated
Width 406 mm
Size 20.00x16.00x6.00 in
Color Gray
Type Gangable, Single Door, Four Lock
Material Steel
Applications For Indoor, Outdoor
Mounting Type Wall
Depth 152 mm
Height 508 mm
Standard 12,13,4,And 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Family Brand Name Hoffman
Gauge 16 or 14 ga
Body Gauge 16
Cover Type Continuous Hinge with Clamps
Sub Brand Hoffman
Thickness 1.52 Millimetre mm
