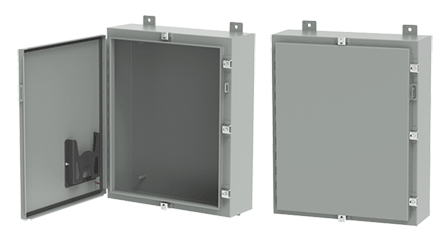

Hoffman A20H16BLP 20 x 16 x 8 Inch Gray 16 Gauge Steel NEMA 4 1-Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$755.55/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A20H16BLP
North Coast Part # 154108

Features

  • Seams continuously welded and ground smooth
  • External wall-mounting brackets for easy installation
  • Formed external flanges around all sides of enclosure opening
  • Stainless steel screw-down clamps on three sides of door
  • Removable heavy gauge stainless steel continuous hinge pin
  • Removable door with continuous hinge for strength and ruggedness
  • Hasp and staple provided for padlocking
  • Data pocket is high-impact thermoplastic
  • Collar studs for mounting optional panels
  • Bonding provision on door

Specifications

  • Height (H) (inch): 20
  • Height (H) (millimetre): 508
  • Width (W) (inch): 16
  • Width (W) (millimetre): 406
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Gray
  • Color Code: ANSI 61
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A20P16
  • Conductive Panel: A20P16G
  • Panel Size (D x E) (inch): 17.00 x 13.00
  • Panel Size (D x E) (millimetre): 432 x 330
  • Clamp Quantity: 4
  • Data Pocket: Small
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Size: 20.00x16.00x8.00 in

Related Products

Accessory

  • A20P16G
  • A20P16
  • ACBK6SS
  • AFC412SS
  • APWK138NF
  • APWK95NF
  • APWK53NFSS
  • APWK711NFSS
  • APWK138NFNM
  • AWDH2016N4SS
  • APWK53NFNM
  • APWK138NFSS
  • APWK116NFNM
  • APWK95NFNM
  • APWK715NFSS
  • APWK95NFSS
  • APWK53NF
  • AWDH1612N4SS
  • AWDH2016N4
  • AWDH1612N4
  • APWK133NF
  • ALFSWD
  • ADSTOPK
  • AGP1218
  • GP166
  • GP128
  • DLGP618
  • GP168
  • DLGP610
  • AGP618
  • GP126
  • AGP1618
  • AHCI10E
  • AHCI240R
  • AHCI238S
  • AHCI1DV
  • AHCI60R
  • AHCI5E
  • A16T
  • LEDA2S35
  • A20T
  • LEDA1S35
  • APE050
  • ANADFK
  • ATZ
  • A16NTMA2
  • AS050
  • APE100
  • A20NTMA2

Overview

UPC 78351024420
Item Long Description These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.
GTiN 00783510244200
Finish Powder Coated
Width 406 mm
Size 20.00x16.00x8.00 in
Color Gray
Type Gangable, Single Door, Four Lock
Material Steel
Applications For Indoor, Outdoor
Mounting Type Wall
Depth 203 mm
Height 508 mm
Standard 12,13,4,And 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Family Brand Name Hoffman
Body Gauge 16
Cover Type Continuous Hinge with Clamps
Sub Brand Hoffman
Thickness 1.52 mm
