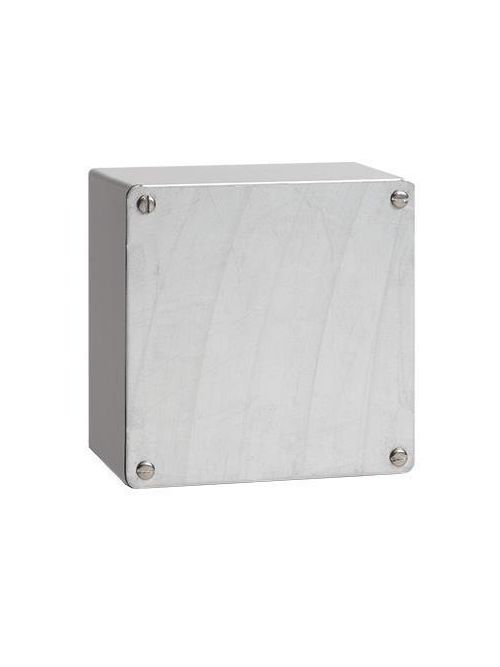

Hoffman A242410GSC 24 x 24 x 10 Inch 14 Gauge Galvanized Steel NEMA 3 Screw Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$571.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A242410GSC
North Coast Part # 664051

Features

  • Captivated stainless steel cover screws thread into sealed wells
  • Oil-resistant gasket and adhesive
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Grounding stud on inside back of box

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 24
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 10
  • Depth (D) (millimetre): 254
  • Protection Rating: NEMA Type 3
  • Material: Mild Steel
  • NEMA Rating: 3 Weather-resistant
  • Cover Screw Quantity: 12
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.9
  • Color: Unpainted
  • Door Thickness (gauge): 10
  • Door Thickness (millimetre): 3.4
  • Finish: Galvanized
  • Size: 24.00x24.00x10.00 in

Categories

Overview

UPC 78351049129
Item Long Description Use this enclosure as a wiring, junction, pull or terminal box in applications subject to windblown dust and/or rain.
GTiN 00783510491291
Width 24 in
Size 24.00x24.00x10.00 in
Type Type 3, 3R, 4, 4X Boxes and Enclosures
Material Steel
Applications Power Distribution
Depth 254 mm
Height 24 in
Standard 12,CSA,CUL Listed Per CSA C22.2 No 94,File 42184: Type 4 And 12,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3 And 12 (except For Mounting Provisions),Type 3,UL 508A Listed
Number of Screws 12
Family Brand Name Hoffman
Cover Gauge 10
Body Gauge 14
Sub Brand Hoffman
Finish Galvanized
Body Thickness 1.9 mm
