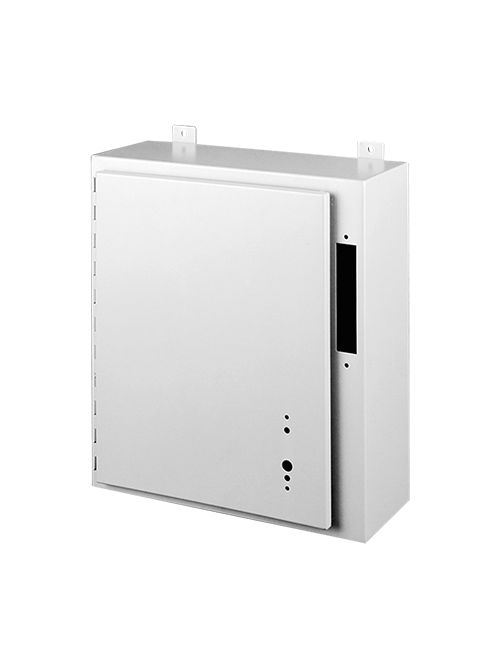

Hoffman A24AB2210LP 24 x 21.38 x 10 Inch White/Gray 14 Gauge Steel NEMA 12 Wall Mount Disconnect Enclosure
$687.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24AB2210LP
North Coast Part # 544617

Features

  • Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
  • Type 12 rated door gasket
  • Seams continuously welded and ground smooth
  • Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
  • Collar studs provided for mounting optional panels
  • Removable door with continuous hinge
  • 14 gauge steel
  • External mounting brackets
  • Data pocket is high impact thermoplastic
  • External-formed flange around all sides of enclosure opening
  • Guide bracket(s) and door catch welded to door

Accessories

  • Compact Cooling Fans
  • Blank Adapter Plates, Mild Steel
  • Steel and Stainless Steel Window Kits
  • Panelite Enclosure Lights Overview
  • Electric Heater
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures

Specifications

  • Bulletin Number: A22
  • Material: Steel
  • Model Code: 32610
  • Ship Wt. Std. Pkg. (lbs): 47.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A24AB2210LP
  • A in.: 24
  • B in.: 21.38
  • C in.: 10
  • Panel Size D x E in.: 21.00 x 17.00
  • Conductive Panel: A24P20G
  • Data Pocket Size in.: 6.00 x 6.00
  • Panel: A24P20
  • Standards: UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA File No. 42186: Type 12 || IEC 60529, IP65

Categories

Overview

UPC 78351032610
GTiN 00783510326104
Finish Painted Steel
Width 21.38 in
Size 24.00x21.38x10.00 in
Type Allen-Bradley 1494 Cutout Disconnect Enclosure, Type 12
Material Steel
Applications These enclosures house Allen-Bradley Bulletin 1494F flange-mount disconnect switches and Bulletin 1494D flange-mount operators for circuit breakers.Furnished with Enclosure, 1. Guide bracket(s) and door catch welded to door, 2. Locking bar(s) for door hardware, 3. Spacers and screws to support disconnect to panel, 4. Instructions to locate and install disconnects
Depth 10 in
Height 24 in
Standard IEC 60529, IP65,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,CSA File No. 42186: Type 12,UL 508A Listed; Type 12, 13; File No. E61997,NEMA/EEMAC Type 12, 13
Family Brand Name Hoffman
Sub Brand Hoffman
