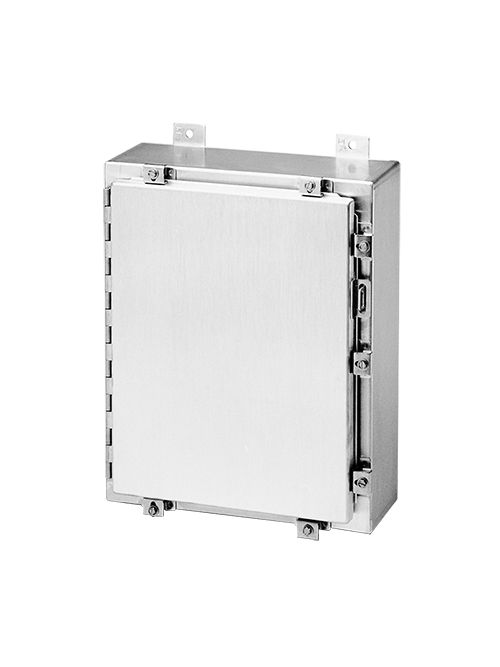

Hoffman A24H2010ALLP 24 x 20 x 10 Inch Aluminum NEMA 4X Clamp Cover Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,871.93/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24H2010ALLP
North Coast Part # 215564

Features

  • Lightweight, Type 4x hinged enclosure.
  • Seams continuously welded and ground smooth
  • Rolled lip around three sides of door and all sides of enclosure opening
  • Stainless steel door clamp assemblies
  • Door is easily removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Hasp and staple for padlocking
  • Tapped pads provided for mounting optional panels; panel screws are plated
  • Oil-resistant gasket
  • Enclosures are unpainted; door front has a smooth, brushed finish

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 20
  • Width (W) (millimetre): 508
  • Depth (D) (inch): 10
  • Depth (D) (millimetre): 254
  • Protection Rating: NEMA Type 12
  • Material: Aluminum
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 21.00 x 17.00
  • Panel Size (D x E) (millimetre): 533 x 432
  • Conductive Panel: A24P20G
  • Aluminum Panel: A24P20AL
  • Steel Panel: A24P20
  • Panel Mounting Stud Quantity: 4
  • Clamp Quantity: 5
  • Data Pocket Size (D x E) (inch): 12.00 x 12.00
  • Data Pocket Size (D x E) (millimetre): 305 x 305
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed
  • Thickness (T) (inch): 0.08
  • Thickness (T) (millimetre): 2
  • Size: 24.00x20.00x10.00 in

Related Products

Accessory

  • A24P20
  • A24P20G
  • ACBK6SS
  • AFC412SS
  • AWDH2416N4SS
  • APWK53NFNM
  • APWK1711NFSS
  • AWDH2016N4SS
  • APWK95NFNM
  • APWK138NFSS
  • AWDH1612N4SS
  • APWK53NFSS
  • APWK715NFSS
  • APWK711NFSS
  • AWDH2420N4SS
  • AWDH1418N4SS
  • APWK138NFNM
  • APWK95NFSS
  • APWK116NFNM
  • ALFSWD
  • ADSTOPKSS6
  • AHCI10E
  • AHCI238S
  • AHCI60R
  • AHCI1DV
  • AHCI5E
  • AHCI240R
  • LEDA1S35
  • LED24V15
  • A24T
  • A20T
  • LEDA2S35
  • APE050
  • ATZ
  • AS050
  • A20NTMA2
  • APE100
  • A24NTMA2
  • A24NTMA3
  • ANADFK

Overview

UPC 78351027360
Item Long Description The Continuous Hinge Aluminum Enclosure with Clamps is a lightweight, Type-4X solution that features a hinged cover that secures on the three, non-hinged sides via stainless steel clamps and screws. This enclosure is ideal for protection of components and controls in highly-corrosive indoor or outdoor environments such as petrochemical processing plants, sewage treatment plants, and marine environments.
GTiN 00783510273606
Width 20 in
Size 24.00x20.00x10.00 in
Type Wall-Mount, Aluminum
Material Aluminum
Applications Controls and Drives; Corrosive Environments
Height 24 in
Standard 12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 0.08 in
Depth 254 mm
