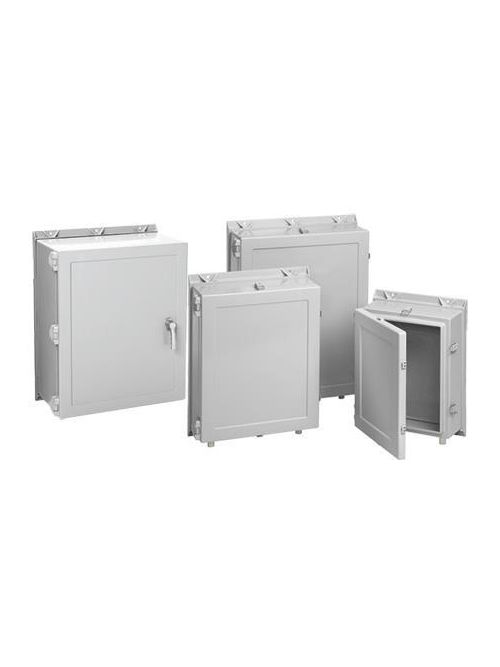

Hoffman A24H2020GQRLP 24.25 x 20.25 x 20 Inch Gray Fiberglass NEMA 4X Quick Release Latch Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,056.74/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24H2020GQRLP
North Coast Part # 1011088

Features

  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
  • Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
  • Seams are sealed; no holes or knockouts
  • Gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Data pocket is high-impact thermoplastic
  • Copper-flashed steel collar studs for mounting optional panels and terminal block kits

Specifications

  • Height (H) (inch): 24.25
  • Height (H) (millimetre): 616
  • Width (W) (inch): 20.25
  • Width (W) (millimetre): 514
  • Depth (D) (inch): 20
  • Depth (D) (millimetre): 508
  • Protection Rating: NEMA Type 12
  • Material: Fiberglass
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Latch Quantity: 4
  • Panel: A24P20
  • Conductive Panel: A24P20G
  • Panel Size (inch): 21.00 x 17.00
  • Panel Size (millimetre): 533 x 432
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Gray
  • Finish: Smooth Matte
  • Thickness (T) (inch): 0.14
  • Thickness (T) (millimetre): 3.6
  • Size: 24.25x20.25x20.00 in

Related Products

Accessory

  • LED24V15
  • TE162024011
  • A24P20
  • A24P20G
  • A24P20SS6
  • A24P20C
  • A24P20AL
  • APWK116NFNM
  • APWK138NFNM
  • APWK53NFNM
  • APWK95NFNM
  • AS150200250NM
  • ASPB100125NM
  • AS300350400NM
  • ASPB05075NM
  • H2OMITTER
  • AVDR4SS4
  • AVDR4NM
  • A24NTMA2
  • A20NTMA2
  • A20T
  • A24T
  • ATZ

Overview

UPC 78351035050
Item Long Description A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature padlockable polyester latches, or HOFFMAN's exclusive PowerGlide Handle with 3-point latching, for ease of access with increased security.
GTiN 00783510350505
Width 20.25 in
Size 24.25x20.25x20.00 in
Type Wall-Mount, Fiberglass and Thermoplastic
Material 35050
Applications Controls and Drives; Corrosive Environments
Depth 508 mm
Height 24.25 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
Family Brand Name Hoffman
Number of Latches 4
Sub Brand Hoffman
Finish Matte
Color Gray
Thickness 0.14 in
