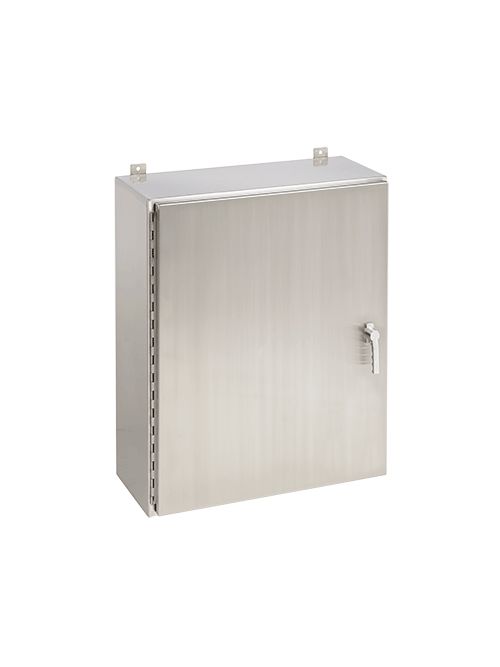

Hoffman A24H2408SSLP3PT 24 x 24 x 8 Inch Stainless Steel NEMA 4X Wall Mount Enclosure
$2,461.54/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24H2408SSLP3PT
North Coast Part # 545171

Features

  • 14 gauge Type 304 or 316L stainless steel bodies and doors
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket
  • Rolled lip around three sides of door
  • Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
  • Remove door by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
  • Bonding provision on door; grounding stud on body

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.

Accessories

  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Steel and Stainless Steel Window Kits
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier

Specifications

  • Bulletin Number: A4SW3
  • Material: Stainless Steel
  • Model Code: 14307
  • Ship Wt. Std. Pkg. (lbs): 51.8
  • Interchangeable: False
  • Catalog Number: A24H2408SSLP3PT
  • A in.: 24
  • B in.: 24
  • C in.: 8
  • F in.: 3.00
  • Panel Size D x E in.: 21.00 x 21.00
  • Conductive Panel: A24P24G
  • Steel Panel: A24P24
  • Stainless Steel Type: 304
  • Data Pocket: Small
  • Stainless Steel Panel: A24P24SS6
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || IEC 60529, IP66

Overview

UPC 78351014307
GTiN 00783510143077
Width 24 in
Size 24.00x24.00x8.00 in
Type Continuous Hinge with 3-Point Latch, Type 4X
Material Stainless Steel
Applications These enclosures feature Hoffman's exclusive POWERGLIDE Handle with 3-point latching, ideal for indoor or outdoor applications that require corrosion protection, convenient access, and padlocking security.
Depth 8 in
Height 24 in
Standard UL 508A Listed,IP66,4,Meets NEMA Type 3RX Requirements,CUL Listed Per CSA C22.2 No 94,13,12,Type 3R,NEMA/EEMAC Type 3R,File No. E61997,IEC 60529,4X
Family Brand Name Hoffman
Sub Brand Hoffman
