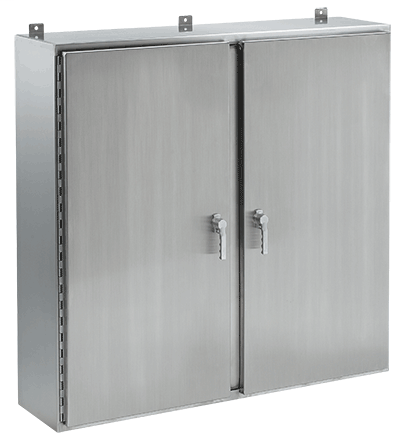

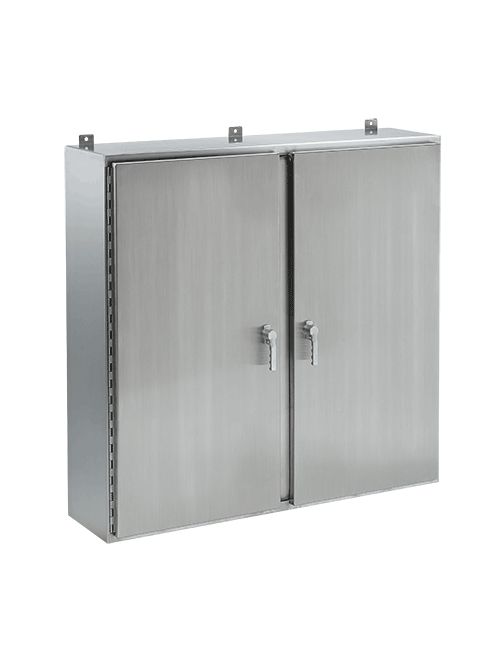

Hoffman A24H4808WFSSLP3PT 24 x 48 x 8 Inch 14 Gauge 304 Stainless Steel NEMA 4X 2-Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$5,400.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24H4808WFSSLP3PT
North Coast Part # 684429

Features

  • Seams continuously welded and ground smooth
  • Removable centerpost for easy panel installation
  • Flange trough collar around all sides of enclosure door openings
  • External mounting brackets
  • Heavy-duty 3-point latching mechanism operated by Type 316 stainless steel PowerGlide padlocking handles
  • Easily removable doors by pulling heavy gauge continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Seamless foam-in-place gasket
  • Collar studs provided for mounting optional panels
  • Bonding provisions on doors; grounding studs on body

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 48
  • Width (W) (millimetre): 1,219
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 45.00 x 21.00
  • Panel Size (D x E) (millimetre): 1143 x 533
  • Conductive Panel: A48P24G
  • Panel Gauge: 12
  • Mild Steel Panel: A48P24
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 2
  • Size: 24.00x48.00x8.00 in

Related Products

Accessory

  • LED24V15
  • T150116G152
  • AS050SS
  • A48P24
  • A48P24G
  • AWDH1612N4SS
  • APWK116NFNM
  • APWK711NFSS
  • APWK138NFNM
  • APWK715NFSS
  • AWDH2016N4SS
  • APWK53NFNM
  • APWK138NFSS
  • APWK95NFNM
  • APWK1711NFSS
  • APWK95NFSS
  • APWK53NFSS
  • AWDH1418N4SS
  • ADPX4BSS
  • GSKTKITS375
  • ADSTOPKSS6
  • ADPX4ASS
  • ADPX4CSS
  • ALFSWD
  • ACSHELF1818SS
  • ACSHELF1212SS
  • AHCI60R
  • AHCI10E
  • AHCI5E
  • AHCI1DV
  • AHCI240R
  • AHCI238S
  • A48T
  • LEDA2S35
  • LEDA1S35
  • A24T
  • AFK1208SS
  • APE100
  • ATZ
  • A24NTMA2
  • AFK0608SS
  • AFK2408SS6
  • AFK0608SS6
  • AFK1808SS6
  • AS050
  • APE050
  • AFK1208SS6
  • AFK2408SS
  • AFK1808SS

Categories

Overview

GTiN 00783510145217
Width 48 in
Size 24.00x48.00x8.00 in
Type Continuous Hinge Two-Door With 3-Point Latch,Type 4X
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 203 mm
Height 24 in
Standard CUL Listed Per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number E61997,IEC 60529, IP66,NEMA Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351014521
Finish Brushed
Thickness 2 mm
