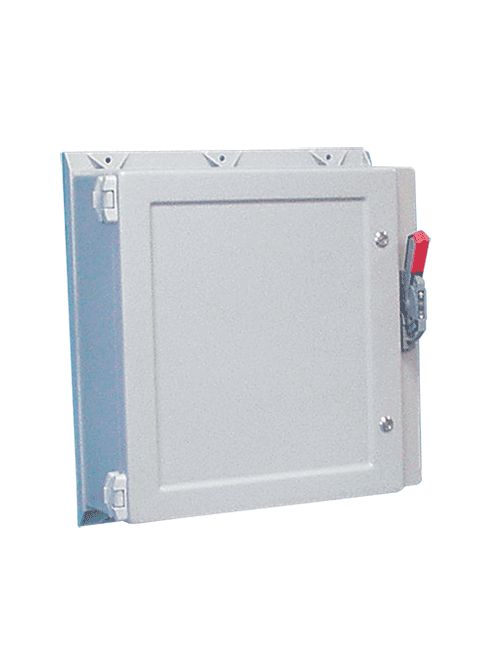

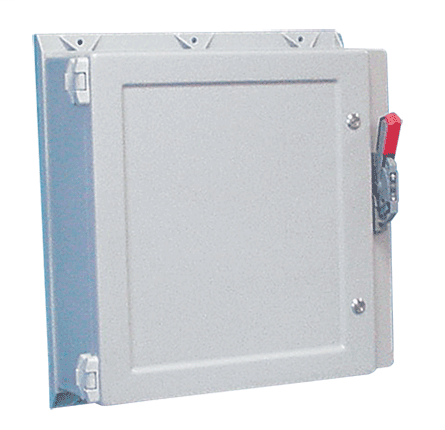

Hoffman A24HS2412GQRLP 24.19 x 24.19 x 12 Inch Fiberglass NEMA 4X Wall Mount Cutout Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,605.50/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24HS2412GQRLP
North Coast Part # 674742

Features

  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Seams are sealed; no holes or knockouts
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily drilled, filed or sawed
  • Hinges are fiberglass reinforced polyester
  • Doors are secured with Type 304 stainless steel slotted quarter-turn latches
  • Data pocket is high-impact thermoplastic
  • Copper flashed steel collar studs for mounting optional panels and terminal block kits
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Internal grounding provisions for quarter-turn latches

Specifications

  • Height (H) (inch): 24.19
  • Height (H) (millimetre): 614
  • Width (W) (inch): 24.19
  • Width (W) (millimetre): 614
  • Depth (D) (inch): 12
  • Depth (D) (millimetre): 305
  • Protection Rating: NEMA Type 4X
  • Material: Fiberglass
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (inch): 21.00 x 21.00
  • Panel Size (millimetre): 533 x 533
  • Conductive Panel: A24P24G
  • Mounting (G x H) (inch): 25.81 x 18.00
  • Mounting (G x H) (millimetre): 656 x 457
  • Panel: A24P24
  • Latch Quantity: 2
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Smooth Matte
  • Thickness (T) (inch): 0.12
  • Thickness (T) (millimetre): 3
  • Size: 24.19x24.19x12.00 in

Related Products

Accessory

  • TE162024011
  • LED24V15
  • A24P24G
  • A24P24
  • A24P24AL
  • A24P24C
  • A24P24SS6
  • IW3000
  • IW4000
  • APWK53NFNM
  • APWK116NFNM
  • APWK95NFNM
  • AS150200250NM
  • ASPB05075NM
  • AS300350400NM
  • ASPB100125NM
  • H2OMITTER
  • AVDR4SS4
  • AVDR4NM
  • A24NTMA2
  • A24T
  • ATZ

Overview

UPC 78351013236
Item Long Description For effective and economical disconnect protection in the harshest corrosive environments, these enclosures provide secure door closure through the use of Type 304 stainless steel slotted quarter-turn latches.
GTiN 00783510132361
Width 24.19 in
Size 24.19x24.19x12.00 in
Type Disconnect, Wall-Mount
Material Fiberglass
Applications Arc Flash Safety; Controls and Drives; Corrosive Environments
Depth 305 mm
Height 24.19 in
Standard CUL Listed Per CSA C22.2 No. 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Enclosure Flammability Evaluated Per UL 508A,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
Family Brand Name Hoffman
Number of Latches 2
Sub Brand Hoffman
Finish Matte
Color Gray
Thickness 0.12 in
