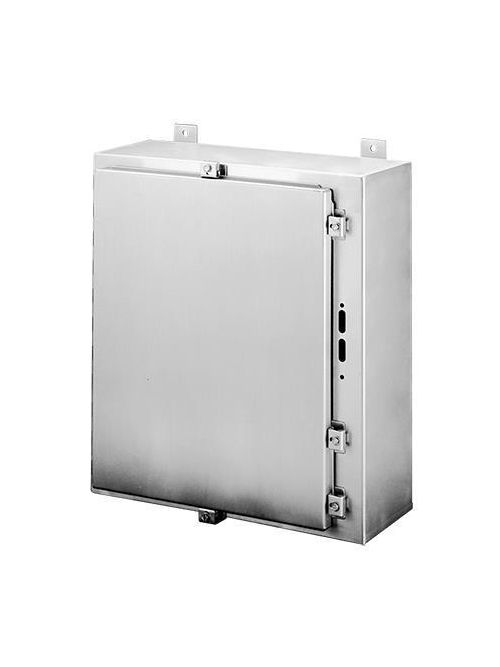

Hoffman A24HS2508SS6LP 24 x 25.38 x 8 Inch 14 Gauge 316L Stainless Steel NEMA 4X Wall Mount Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,411.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24HS2508SS6LP
North Coast Part # 675015

Features

  • Seams continuously welded and ground smooth
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Stainless steel door clamps on three sides of door
  • Door removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Seamless foam-in-place gasket
  • Collar studs provided for mounting optional panels
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Bonding provision on door; ground stud on body

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 25.37999916
  • Width (W) (millimetre): 645
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 4X
  • Material: Stainless Steel 316L
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 21.00 x 21.00
  • Panel Size (D x E) (millimetre): 533 x 533
  • Panel: A24P24
  • Conductive Panel: A24P24G
  • Clamp Quantity: 5
  • Data Pocket Size (D x E) (inch): 6.00 x 6.00
  • Data Pocket Size (D x E) (millimetre): 152 x 152
  • Stainless Steel Type: 316L
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Color: Unpainted
  • Finish: Brushed #4
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.98
  • Size: 24.00x25.38x8.00 in

Related Products

Accessory

  • APWK53NFSS
  • T150116G152
  • AS050SS
  • LED24V15

Overview

UPC 78351064390
Item Long Description For disconnect applications in which a clamp-secured door is preferred, this enclosure features clamps on three sides to keep liquids and contaminants from entering and a preferred cutout that accepts major brand disconnect switches and circuit breakers.
GTiN 00783510643904
Width 25.379 in
Size 24.00x25.38x8.00 in
Type Disconnect, Wall-Mount
Material STAINLESS STEEL
Applications Arc Flash Safety; Controls and Drives; Corrosive Environments
Depth 203 mm
Height 24 in
Standard 12,13,3R,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Brushed
Thickness 1.98 mm
