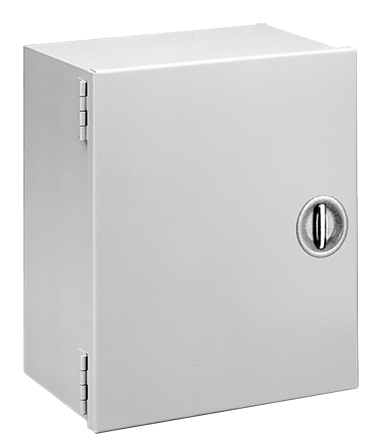

Hoffman A24N206LP 24 x 20 x 6.62 Inch 16 Gauge Steel NEMA 1 Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$435.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24N206LP
North Coast Part # 827289

Features

  • Butt hinges on door
  • Mounting holes on back of enclosure
  • Flush cover and offset body
  • Recessed T-handle latch is flush with door

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 20
  • Width (W) (millimetre): 508
  • Depth (D) (inch): 6.63
  • Depth (D) (millimetre): 168
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Gauge (gauge): 16
  • Panel: A24N20MP
  • Panel Gauge: 14
  • Stud Quantity: 4
  • Panel Size (D x E) (inch): 21.00 x 18.50
  • Panel Size (D x E) (millimetre): 533 x 470
  • Mounting (G x H) (inch): 21.88 x 15.00
  • Mounting (G x H) (millimetre): 556 x 381
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: 24.00x20.00x6.62 in

Related Products

Accessory

  • A24N20MPP
  • A24N20MP
  • APWK1711NF
  • ACLJIC
  • AGLK2
  • AGS408
  • AGS416
  • AGS808
  • AGS816
  • ATPPY61

Categories

Overview

UPC 78351079950
Item Long Description Medium Hinged-Cover with Recessed Handle, Type 1, have an easy-to-open recessed T-handle and meet basic functionality requirements for housing controls and instrumentation.
GTiN 00783510799502
Finish Powder Coated
Width 20 in
Size 24.00x20.00x6.62 in
Color Gray
Type Type 1 Boxes and Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 168 mm
Height 24 in
Family Brand Name Hoffman
Gauge 16 AWG
Sub Brand Hoffman
Thickness 1.52 mm
