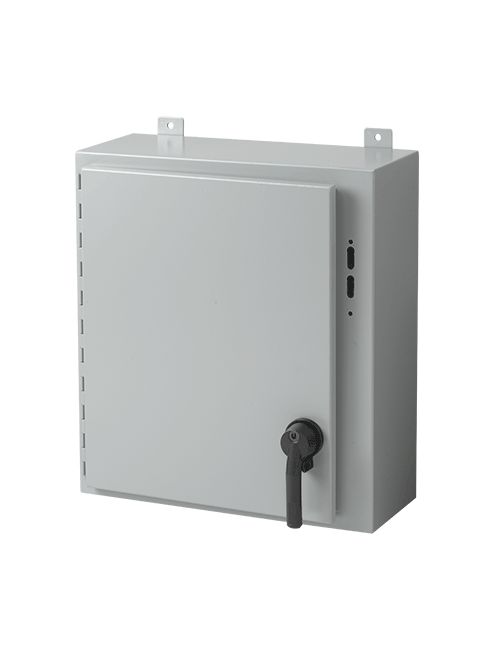

Hoffman A24SA2610LP 24 x 25.38 x 10 Inch White/Gray 14 Gauge Steel NEMA 12 Wall Mount Disconnect Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A24SA2610LP
North Coast Part # 668101


  • Includes latch pivot post(s) and cover interlock bracket welded to door, cover latch bar for door, and instructions for installing disconnects
  • Model numbers ending with “PL” include handle and handle latching hardware
  • 14 gauge steel
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
  • Available with or without Hoffman supplied padlocking defeater handle and latching system


  • Purchase panels separately.


  • Blank Adapter Plates, Mild Steel
  • Compact Cooling Fans
  • Panelite Enclosure Lights Overview
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • PowerGlide Defeater Handle Kit
  • Steel and Stainless Steel Window Kits


  • Bulletin Number: A25
  • Material: Steel
  • Model Code: 32930
  • Ship Wt. Std. Pkg. (lbs): 54.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: A24SA2610LP
  • A in.: 24
  • B in.: 25.38
  • C in.: 10
  • Panel Size D x E in.: 21.00 x 21.00
  • Conductive Panel: A24P24G
  • Panel: A24P24
  • With or Without Handle: Without
  • Data Pocket Size D x E in.: 6.00 x 6.00
  • Standards: UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA File No. 42186: Type 12 || IEC 60529, IP65


UPC 78351032930
GTiN 00783510329303
Finish Painted Steel
Width 25.38 in
Size 24.00x25.38x10.00 in
Type Disconnect, Wall-Mount
Material Steel
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Depth 10 in
Height 24 in
Standard CSA File No. 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
