Hoffman A302412UC 30 x 24 x 12 Inch Steel NEMA 1 Hinged Cover Locking Utility Cabinet
Product image thumbnail 0
Product image thumbnail 1
$373.86/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A302412UC
North Coast Part # 547805

Features

  • Removable door with reversible hinge; door can hinge from either left or right side and can be changed without tools
  • Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security

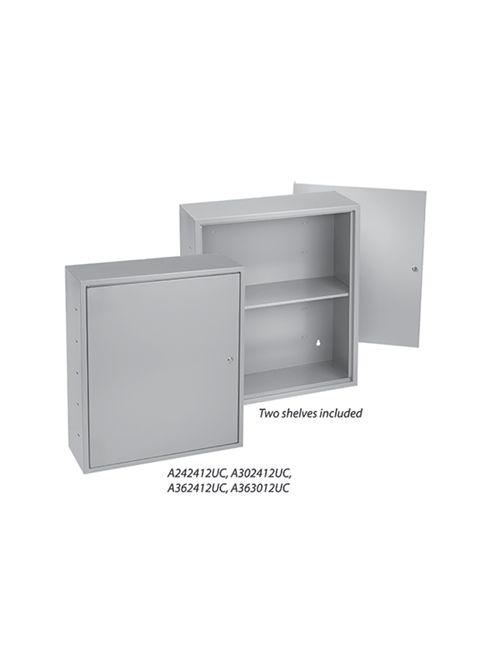

  • SHELF MODELS A242412UC, A302412UC, A363012UC: Shelf cabinets provide a level of security for storage of equipment, fuses, and other components
  • Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides
  • KEY HOOK MODEL A12122UC: Use as a key cabinet or a hanging locker to organize items that require a level of security
  • Key hook model has integral hooks assembled in door and back of enclosure
  • Four mounting keyholes in back of enclosure
  • Door has quarter-turn key lock; two keys included
  • Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam
  • Retractable spring hinge

Specifications

  • Height (H): 762 millimetre
  • Width (W): 610 millimetre
  • Depth (D): 305 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Mounting Holes (G): 22
  • Mounting (G): 558 millimetre
  • Mounting (H): 457 millimetre
  • Max Shelf Locations Hooks Quantity: 4 Shelves
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.52 millimetre

Overview

UPC 78351014762
GTiN 00783510147624
Width 24 in
Size 30.00x24.00x12.00 in
Type Shelf Model
Material Steel
Applications Power Distribution
Depth 12 in
Height 30 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 40,File Number E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Polyester Textured Powder Coated
Color ANSI 61 Gray
Gauge 14 and 16 ga
Cover Type Hinged
Thickness 1.52 Millimetre mm
