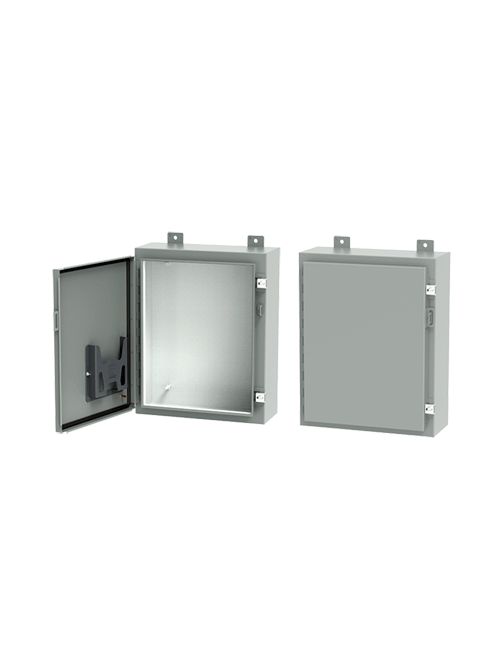

Hoffman A302424LP 30 x 24 x 24 Inch White/Gray 14 Gauge Steel NEMA 12 Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,264.85/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A302424LP
North Coast Part # 598541

Features

  • Seams continuously welded and ground smooth
  • External wall-mounting brackets for easy installation
  • Formed external return flanges around all sides of enclosure opening
  • Screw-down door clamps
  • Removable heavy-gauge continuous hinge pin
  • Hasp and staple for padlocking
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Bonding provision on door
  • Removable door with continuous hinge

Specifications

  • Height (H) (inch): 30
  • Height (H) (millimetre): 762
  • Width (W) (inch): 24
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 24
  • Depth (D) (millimetre): 610
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel: A30P24
  • Conductive Panel: A30P24G
  • Panel Size (D x E) (inch): 27.00 x 21.00
  • Panel Size (D x E) (millimetre): 686 x 533
  • Clamp Quantity: 2
  • Data Pocket: Large
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Size: 30.00x24.00x 24.00 in

Related Products

Accessory

  • LED24V15
  • A30P24G
  • A30P24
  • AFC412SS
  • AWDH2420N4
  • AWDH1612N4
  • APWK2420H
  • AWDH2016N4SS
  • APWK95NFSS
  • APWK724NFSS
  • APWK138NF
  • APWK715NFSS
  • AWDH2016N4
  • APWK133NF
  • APWK53NFSS
  • APWK2020H
  • APWK138NFNM
  • AWDH2420N4SS
  • APWK1711NFSS
  • APWK175NF
  • APWK95NF
  • APWK53NF
  • APWK138NFSS
  • APWK1212H
  • APWK2016H
  • APWK720NFSS
  • AWDH1612N4SS
  • APWK2315NFSS
  • APWK1612H
  • AWDH1418N4SS
  • APWK1711NF
  • APWK95NFNM
  • AWDH2416N4SS
  • APWK53NFNM
  • APWK2315NF
  • APWK711NFSS
  • AWDH2416N4
  • AWDH1418N4
  • APWK116NFNM
  • ALFSWD
  • ADSTOPK
  • AA35SHLF1218
  • DLGP610
  • AASHLF1218
  • AA61SHLF1218
  • GP126
  • GP248
  • GP206
  • AA61SHLF1818
  • GP168
  • AA35SHLF1818
  • GP128
  • GP2412
  • AASHLF1818
  • AGP618
  • GP208
  • GP166
  • ADK24A
  • AHCI5E
  • AHCI60R
  • AHCI238S
  • AHCI240R
  • AHCI10E
  • AHCI1DV
  • A24T
  • A30T
  • LEDA1S35
  • LEDA2S35
  • ATZ
  • A24NTMA3
  • APE050
  • ANADFK
  • A30NTMA3
  • A24NTMA2
  • AS050
  • APE100
  • A30NTMA2

Categories

Overview

UPC 78351027840
Item Long Description For applications requiring a bright white interior to increase control visibility, this enclosure includes a padlocking hasp and staple for security and screw-down clamps for secure closure.
GTiN 00783510278403
Finish Powder Coated
Width 24 in
Size 30.00x24.00x 24.00 in
Type Wall-Mount, Mild Steel
Material Steel
Applications Controls and Drives
Depth 610 mm
Height 30 in
Standard 13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. 42186: Type 12,File No. E61997,IEC 60529,IP65,NEMA/EEMAC Type 12 And 13,Type 12,UL 508A Listed
Family Brand Name Hoffman
Body Gauge 14
Sub Brand Hoffman
Thickness 1.9 mm
