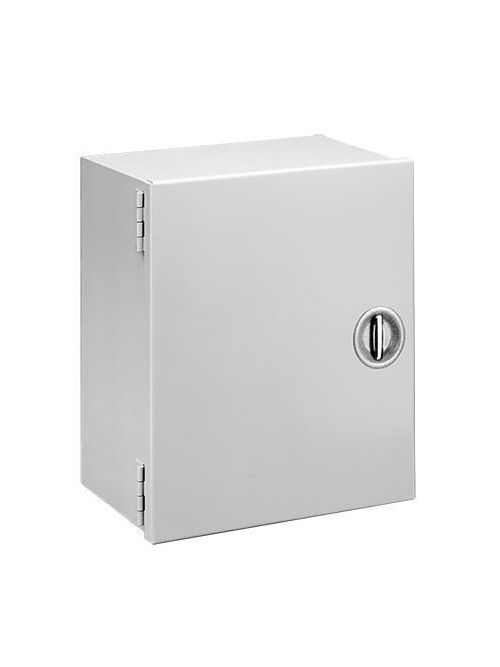

Hoffman A30N206LP Type 1 30 x 20 x 6.625 Inch Enclosure
Product image thumbnail 0
Product image thumbnail 1
$467.78/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A30N206LP
North Coast Part # 753403

Features

  • Butt hinges on door
  • Mounting holes on back of enclosure
  • Flush cover and offset body
  • Recessed T-handle latch is flush with door

Specifications

  • Height (H): 762 millimetre
  • Width (W): 508 millimetre
  • Depth (D): 168 millimetre
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Gauge: 14 gauge
  • Panel: A30N20MP
  • Panel Gauge: 12
  • Stud Quantity: 6
  • Panel Size (D x E): 660 x 470 millimetre
  • Mounting (G x H): 699 x 324 millimetre
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Related Products

Accessory

  • A30N20MPP
  • A30N20MP
  • APWK1711NF
  • ACLJIC
  • AGLK2
  • AGS408
  • AGS416
  • AGS808
  • AGS816
  • ATPPY61

Overview

UPC 78351079970
GTiN 00783510799700
Finish Powder Coated
Width 20 in
Size 30.00x20.00x6.62 in
Color Gray
Type Type 1 Boxes and Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 6.63 in
Height 30 in
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
