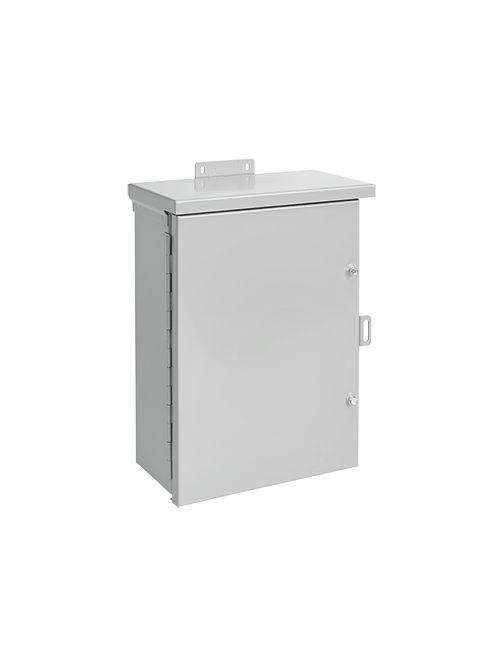

Hoffman A30R2410HCR 30 x 24 x 10 Inch 16/14 Gauge Galvanized Steel NEMA 3R Medium Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$788.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A30R2410HCR
North Coast Part # 212167

Features

  • Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
  • 16 gauge plated steel continuous hinge has stainless steel pin
  • Cover fastened securely with captive plated steel screws
  • Collar studs provided for mounting optional panels
  • Hasp and staple provided for padlocking
  • No gasketing or knockouts
  • 16 or 14 gauge galvanized steel

Notes

  • Purchase panels separately. Optional aluminum panels are available for most sizes.
  • Purchase perforated panels separately.
  • Flanged on all four sides.

Accessories

  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Grounding Device
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Rack Mounting Angles - U Style (Type RA)
  • Touch-Up Paint
  • Steel and Stainless Steel Window Kits

Specifications

  • Bulletin Number: A3M
  • Material: Steel
  • Model Code: 49289
  • Ship Wt. Std. Pkg. (lbs): 68.0
  • Interchangeable: False
  • Catalog Number: A30R2410HCR
  • A in.: 30
  • B in.: 24
  • C in.: 10
  • Panel Size D x E in.: 27.00 x 21.00
  • Mounting G x H in.: 31.00 x 13.00
  • Panel: A30P24
  • Perforated Panel: A30P24PP
  • Overall L in.: 32.00
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27567 || cUL Listed per CSA C22.2 No 94; Type 3R File No. E27567 || NEMA/EEMAC Type 3R || IEC 60529, IP32

Overview

UPC 78351049289
GTiN 00783510492892
Finish Powder Coated
Width 610 mm
Size 30.00x24.00x10.00 in
Color Gray
Type Gangable, Single Door, Three Lock, Medium
Material Steel
Applications Controls and Drives; Power Distribution
Mounting Type Wall
Depth 254 mm
Height 762 mm
Standard 50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27567,IEC 60529,IP32,NEMA/EEMAC Type 3R,Type 3R,Type 3R File No. E27567,UL 50
Family Brand Name Hoffman
Cover Type Hinged
Sub Brand Hoffman
