NVENT HOF A30S12UC shelf utility ca
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$69.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A30S12UC
North Coast Part # 876566

Features

  • Removable door with reversible hinge; door can hinge from either left or right side and can be changed without tools
  • Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security

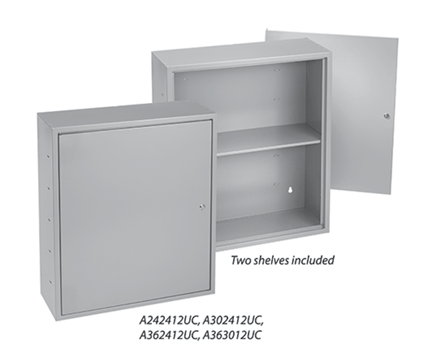

  • SHELF MODELS A242412UC, A302412UC, A363012UC: Shelf cabinets provide a level of security for storage of equipment, fuses, and other components
  • Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides
  • KEY HOOK MODEL A12122UC: Use as a key cabinet or a hanging locker to organize items that require a level of security
  • Key hook model has integral hooks assembled in door and back of enclosure
  • Four mounting keyholes in back of enclosure
  • Door has quarter-turn key lock; two keys included
  • Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam
  • Retractable spring hinge

Specifications

  • Height (H) (inch): 30
  • Height (H) (millimetre): 762
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Modification Services: Yes
  • Type Number: Type 1
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Size: fits 30.00x12.00 in

Overview

GTiN 00783510156640
Width 12 in
Size fits 30.00x12.00 in
Type Locking Utility Cabinets,Type 1
Material Steel
Applications Power Distribution
Height 30 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 40,File Number E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Family Brand Name Hoffman
Sub Brand Hoffman
Product UPC 78351015664
Finish Powder Coated
Color Gray
Thickness 1.52 mm
