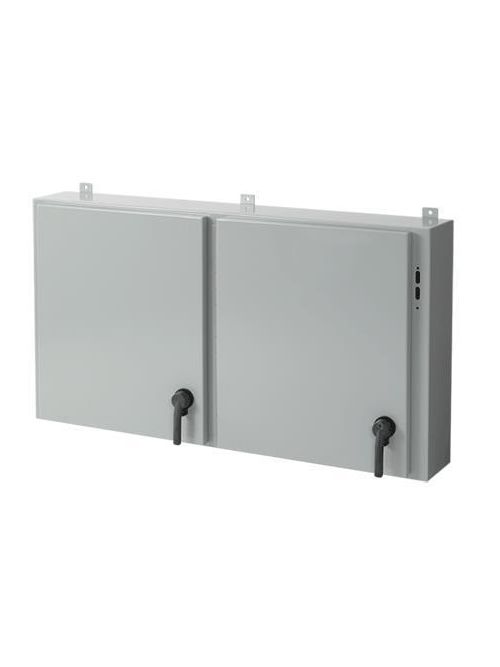

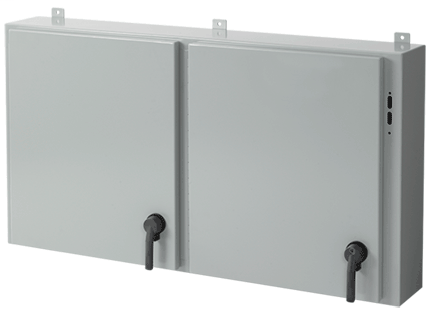

Hoffman A30X2E5408 30 x 54.5 x 8 Inch Steel NEMA 12 2-Door Disconnect Enclosure
$1,576.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A30X2E5408
North Coast Part # 1337236

Features

  • .074-in., .098-in. or .121-in. steel
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Removable centerposts for easy panel installation
  • Concealed, easy-to-remove hinges
  • Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
  • Oil-resistant gasket
  • Removable .127-in. thick steel panels mount on collar studs; purchase panels separately
  • Master door is far right-hand door on all enclosures
  • Defeater on master door requires a screwdriver to open
  • Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
  • Enclosures with three to five doors have three stiffeners on rear of body

Accessories

  • Electric Heater
  • InterSafe Data Interface Ports, Type 4/4X/12
  • Panelite Enclosure Lights Overview

Specifications

  • Bulletin Number: Steel
  • Material: 12708
  • Model Code: 237.0
  • Ship Wt. Std. Pkg. (lbs): False
  • Interchangeable: ANSI 61
  • Catalog Number: A30X2E5408
  • A in.: 30
  • B in.: 54.5
  • C in.: 8
  • Description: Wall-Mount, Two-Doors
  • Conductive Panel: A25P48G
  • Panel: A25P48
  • Body Thickness in.: .098
  • Panel Qty.: 1
  • Body Stiffener: 0
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || IEC 60529, IP55

Overview

UPC 78351012708
GTiN 00783510127084
Width 54.5 in
Size 30.00x54.50x8.00 in
Color Gray
Type Low-Profile, One- to Five-Door Disconnect Enclosure, Type 12
Material 12708
Applications Available in one- to four-door wall-mount and one- to five-door free-stand models, the larger wall-mount sizes accommodate more components and are ideal for applications with limited floor space. Free-stand enclosures are 48- and 60-in. high to provide a clear line of site above the enclosure.
Depth 8 in
Height 30 in
Standard IEC 60529, IP55,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Body Thickness .098 in
Sub Brand Hoffman
