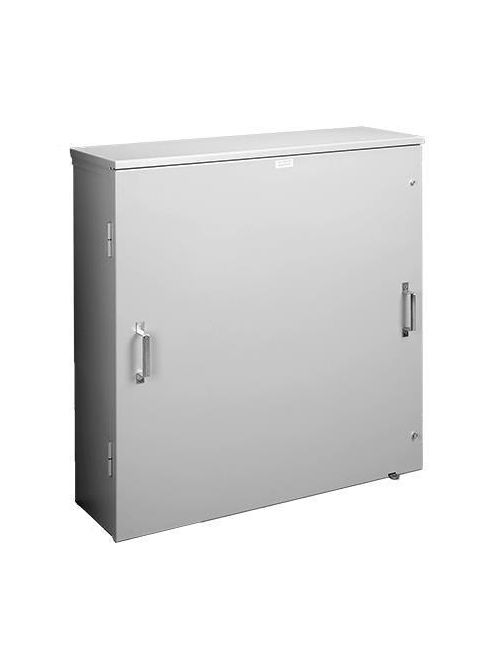

Hoffman A363011HCT 36 x 30 x 11 Inch 12 Gauge Galvanized Steel NEMA 3R Current Transformer Hinge Cover Enclosure
Product image thumbnail 0
Product image thumbnail 1
$847.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A363011HCT
North Coast Part # 158105

Features

  • Dripshield top and seam-free sides, front and back
  • Mounting holes on back of enclosure
  • Mounting studs are provided on the enclosure body
  • Cover is removable in the open position
  • Door handles provided
  • Provisions for padlocking
  • No gasketing or knockouts
  • Ground lug
  • Mounting provisions for optional door stop
  • 14 or 12 gauge galvanized steel

Notes

  • A484814HCT is a double-door cabinet.

Accessories

  • Industrial Corrosion Inhibitors
  • Grounding Device
  • Touch-Up Paint
  • Large Enclosure Door Stop Kit

Specifications

  • Bulletin Number: A90CT
  • Material: Steel
  • Model Code: 42719
  • Ship Wt. Std. Pkg. (lbs): 108.75
  • Interchangeable: False
  • Catalog Number: A363011HCT
  • A in.: 36
  • B in.: 30
  • C in.: 11
  • D in.: 18.75
  • E in.: 15.00
  • F in.: 7.00
  • G in.: 8.00
  • H in.: 8.00
  • Gauge: 12
  • Standards: UL 50, 50E Listed; Type 3R; File No. E27525 || cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525 || NEMA Type 3R || IEC 60529, IP32

Categories

Overview

UPC 78351042719
GTiN 00783510427191
Width 15.00 in
Size 36.00x30.00x11.00 in
Type Current Transformer Cabinets and Terminal Enclosures
Material Steel
Applications Controls and Drives; Power Distribution
Depth 11 in
Height 18.75 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 94,File No. E27525,IEC 60529,IP32,NEMA Type 3R,Type 3R,UL 50
Family Brand Name Hoffman
Gauge 12 AWG
Sub Brand Hoffman
