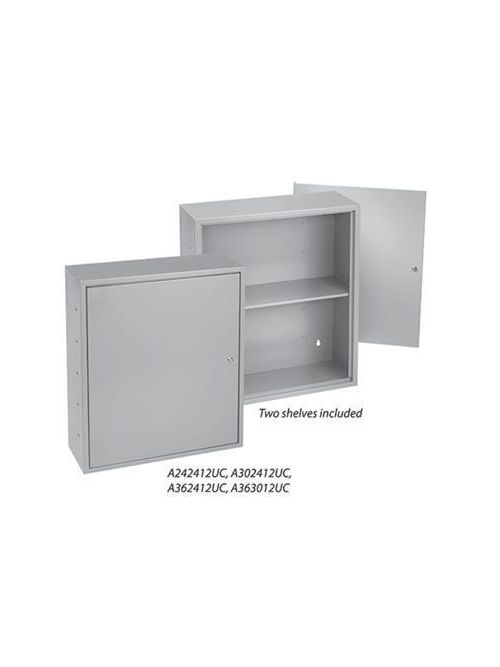

Hoffman A363012UC 36 x 30 x 12 Inch Gray Steel NEMA 1 Locking Utility Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A363012UC
North Coast Part # 597716


  • Removable door with reversible hinge; door can hinge from either left or right side and can be changed without tools
  • Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security
  • SHELF MODELS A242412UC, A302412UC, A363012UC: Shelf cabinets provide a level of security for storage of equipment, fuses, and other components
  • Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides
  • KEY HOOK MODEL A12122UC: Use as a key cabinet or a hanging locker to organize items that require a level of security
  • Key hook model has integral hooks assembled in door and back of enclosure
  • Four mounting keyholes in back of enclosure
  • Door has quarter-turn key lock; two keys included
  • Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam
  • Retractable spring hinge


  • Height (H) (inch): 36
  • Height (H) (millimetre): 914
  • Width (W) (inch): 30
  • Width (W) (millimetre): 762
  • Depth (D) (inch): 12
  • Depth (D) (millimetre): 305
  • Protection Rating: NEMA Type 1
  • Material: Mild Steel
  • NEMA Rating: 1 Indoor, electrical protection
  • Mounting Holes (G): 28
  • Mounting (G) (millimetre): 711
  • Mounting (H) (inch): 24
  • Mounting (H) (millimetre): 610
  • Max Shelf Locations Hooks Quantity: 5 Shelves
  • Modification Services: Yes
  • Type Number: Type 1
  • IP Rating: IP30
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Size: 36.00x30.00x12.00 in


UPC 78351014764
Item Long Description Locking Utility Cabinets, Type 1, are available in key hook and shelf models, are used to protect fuses and other components and can be equipped with a combination lock for applications that require security.
GTiN 00783510147648
Width 30 in
Size 36.00x30.00x12.00 in
Type Locking Utility Cabinets,Type 1
Material Steel
Applications Power Distribution
Depth 305 mm
Height 36 in
Standard 50E Listed,CUL Listed Per CSA C22.2 No 40,File Number E27567,IEC 60529,IP30,NEMA/EEMAC Type 1,Type 1,UL 50
Family Brand Name Hoffman
Sub Brand Hoffman
Finish Powder Coated
Color Gray
Thickness 1.9 mm
