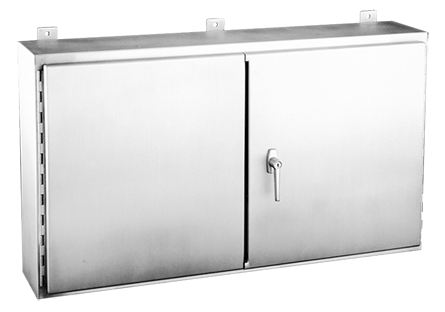

Hoffman A364812WFSSLP 36 x 48 x 12 Inch 12 Gauge Stainless Steel Wall Mount Enclosure
$5,781.82/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A364812WFSSLP
North Coast Part # 219051

Features

  • 14 gauge Type 304 stainless steel
  • Seams continuously welded and ground smooth
  • Rolled lip around all sides of enclosure body opening
  • Gasketed overlapping doors eliminate need for centerpost
  • External mounting brackets
  • Plated steel 3-point latching mechanism and keylocking handle
  • Easily removable doors by pulling heavy-gauge continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Bonding provision on doors; grounding studs on body

Notes

  • Purchase panels separately. Optional stainless steel panels are available for most sizes.
  • Enclosure backs for A42H4212WFSSLP3PT, A42H4812WFSSLP3PT and A42H6012WFSSALP3PT have internal stiffeners.
  • A48H4812WFSSLP3PT is 14 gauge with a 12 gauge back.

Accessories

  • Floor Stand Kit, Stainless Steel
  • HOFFMAN Panelite Enclosure Lights Overview
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Steel and Stainless Steel Window Kits
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier

Specifications

  • Bulletin Number: A12SW
  • Material: Stainless Steel
  • Model Code: 84020
  • Ship Wt. Std. Pkg. (lbs): 131.0
  • Interchangeable: FALSE
  • Catalog Number: A364812WFSSLP
  • A in.: 36
  • B in.: 48
  • C in.: 12
  • Panel Size D x E in.: 45.00 x 33.00
  • Conductive Panel: A48P36G
  • Y in.: 1.5
  • Panel: A48P36
  • Panel Gauge: 12
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA File No. 42186: Type 12 || IEC 60529, IP55

Overview

UPC 78351084020
GTiN 00783510840204
Width 48 in
Size 36.00x48.00x12.00 in
Type Continuous Hinge Two-Door with 3-Point Latch, Type 12
Material Stainless Steel
Applications For indoor applications requiring stainless steel, enclosure features overlapping doors and a centerpost-free interior for easy panel and component installation. The enclosure is secured by a single key-locking handle and three-point latching.
Depth 12 in
Height 36 in
Standard NEMA/EEMAC Type 12,CSA File No. 42186: Type 12,IEC 60529, IP55,CUL Listed Per CSA C22.2 No 94; Type 12; File No. E61997,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
