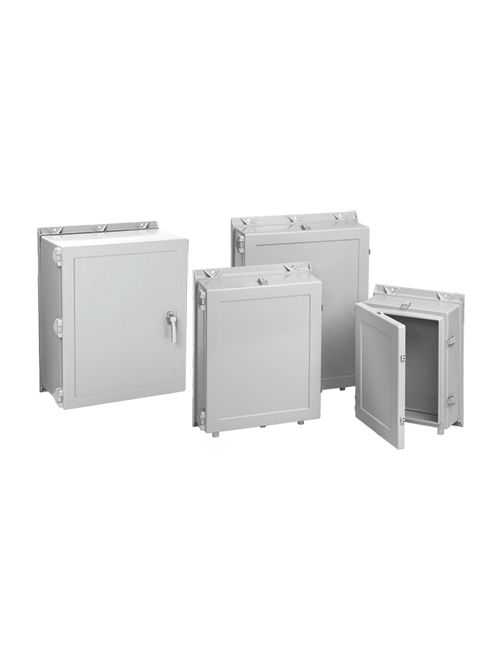

Hoffman A36H3008GQRLP3PT 36.25 x 30.25 x 8 Inch Gray Fiberglass NEMA 4X 3-Point Latch Hinge Cover Enclosure
$2,459.51/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A36H3008GQRLP3PT
North Coast Part # 605637

Features

  • Fiberglass-reinforced material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Type 316L stainless steel padlocking PowerGlide Handle on 3-point latch versions assures security and a water-tight seal while still allowing convenient access
  • Quick-release latch versions feature fiberglass-reinforced polyester latches with integral Type 316L stainless steel padlocking hasp
  • Seams are sealed; no holes or knockouts
  • Gasket assures water-tight and dust-tight seal
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Data pocket is high-impact thermoplastic
  • Copper-flashed steel collar studs for mounting optional panels and terminal block kits

Notes

  • Purchase panels separately. Optional stainless steel, composite and aluminum panels available for most sizes. See General Accessories

Accessories

  • H2Omit Thermoelectric Dehumidifier
  • H2Omit Vent Drains, Type 4X
  • Hol-Sealers Non-Metallic Hole Seals
  • Panels
  • Stainless Steel Window Kits
  • Terminal Block Kit Assembly
  • Thermal Accessories

Specifications

  • Bulletin Number: Fiberglass
  • Material: 14363
  • Model Code: 57.0
  • Ship Wt. Std. Pkg. (lbs): False
  • Catalog Number: A36H3008GQRLP3PT
  • A in.: 36.25
  • B in.: 30.25
  • C in.: 8
  • Description: 3-Point Latch
  • Panel Size in.: 33.00 x 27.00
  • Conductive Panel: A36P30G
  • Panel: A36P30
  • G x H in.: 37.58 x 24.00
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997 || Enclosure flammability evaluated per UL 508A || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||

Overview

UPC 78351014363
GTiN 00783510143633
Width 30-1/4 in
Size 36.25x30.25x8.00 in
Color Gray
Type Hinge-Cover with 3-Point Latch or Quick-Release Latches, Type 4X
Material Fiberglass
Applications A full range of modification options are available for wall-mount fiberglass enclosures, including variable depths to accommodate larger controls. These enclosures feature stainless steel padlocking hasps or Hoffmans exclusive POWERGLIDE Handle with 3-point latching for ease of access with increased security.
Mounting Type Wall
Depth 8 in
Height 36-1/4 in
Standard Enclosure Flammability Evaluated Per UL 508A,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,IEC 60529, IP66,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997
Family Brand Name Hoffman
Cover Type Hinged with 3-Point Latch and Powerglide Handle
Sub Brand Hoffman
