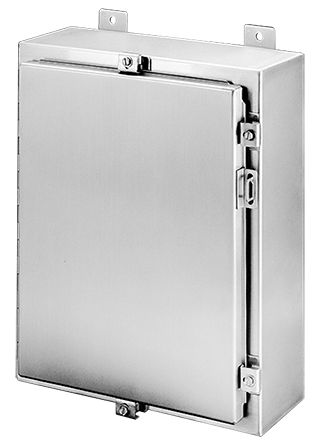

Hoffman A36H3010SSLP 36 x 30 x 10 Inch 14 Gauge 304 Stainless Steel NEMA 4X Wall Mount Enclosure

Features

• 14 gauge Type 304 or Type 316L stainless steel bodies and doors
• Seams continuously welded and ground smooth
• Seamless foam-in-place gasket
• Rolled lip around three sides of door
• Stainless steel door clamp assembly
• Hasp and staple for padlocking
• Door removed by pulling stainless steel continuous hinge pin
• Data pocket is high-impact thermoplastic
• Collar studs provided for mounting optional panels
• Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
• Bonding provision on door; grounding stud on body

Notes

• Purchase panels separately. Optional composite and aluminum panels are available for most sizes.
• Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Accessories

• Fast-Operating Clamp Assembly
• Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
• Junction Box and Wall-Mount Enclosure Swing Out Panel Kit
• Steel and Stainless Steel Window Kits
• H2Omit™ Vent Drains, Type 4X
• H2Omit™ Thermoelectric Dehumidifier

Specifications

• Bulletin Number: A4S
• Material: Stainless Steel
• Model Code: 24180
• Ship Wt. Std. Pkg. (lbs): 86.0
• Interchangeable: False
• Catalog Number: A36H3010SSLP
• A in.: 36
• B in.: 30
• C in.: 10
• F in.: 3.00
• Panel Size D x E in.: 33.00 x 27.00
• Steel Panel: A36P30
• Stainless Steel Type: 304
• Data Pocket: Large
• Conductive Steel Panel: A36P30G
• Stainless Steel Panel: A36P30SS6
• Clamps Qty.: 7
• Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||
