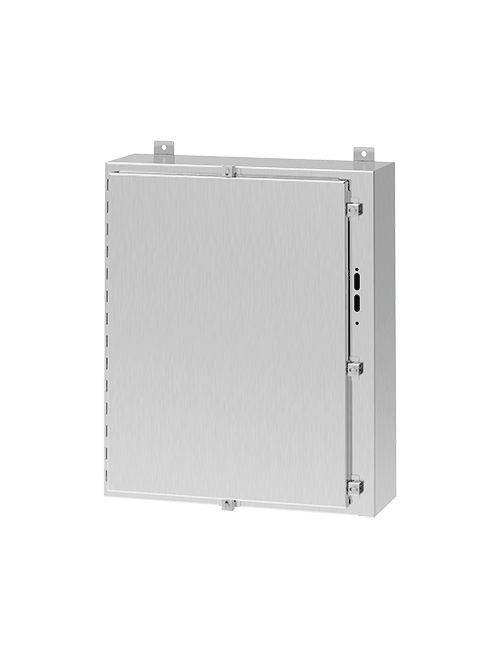

Hoffman A36HS3108SS6LP 36 x 31.38 x 8 Inch Disconnect Enclosure
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # A36HS3108SS6LP
North Coast Part # 666286


  • 14 gauge Type 304 or Type 316L stainless steel
  • Seams continuously welded and ground smooth
  • External mounting brackets
  • External-formed flange around all sides of enclosure opening
  • Stainless steel door clamps on three sides of door
  • Door removed by pulling stainless steel continuous hinge pin
  • Data pocket is high-impact thermoplastic
  • Seamless foam-in-place gasket
  • Collar studs provided for mounting optional panels
  • Holes provided in body for mounting disconnect operating handle and operating mechanism
  • Bonding provision on door; ground stud on body
  • All exterior hardware on Type 316L enclosures matches the enclosure material
  • Bracket welded to door to attach disconnect door catch (interlock)
  • Includes instructions for installing disconnect switches, circuit breakers and operating mechanisms


  • Blank Adapter Plates, Stainless Steel
  • Industrial Corrosion Inhibitors
  • Electric Heater
  • Panelite Enclosure Lights Overview
  • Panels for Type 3R, 4, 4X, 12 and 13 Enclosures
  • Terminal Block Kit Assembly for Type 4, 12 and 13 Enclosures
  • Steel and Stainless Steel Window Kits


  • Bulletin Number: A19S
  • Model Code: 64430
  • Ship Wt. Std. Pkg. (lbs): 80.2
  • Interchangeable: False
  • Catalog Number: A36HS3108SS6LP
  • A in.: 36
  • B in.: 31.38
  • C in.: 8
  • Panel Size D x E in.: 33.00 x 27.00
  • Conductive Panel: A36P30G
  • Number of Clamps: 7
  • Data Pocket Size in.: 12.00 x 12.00
  • Panel: A36P30
  • Stainless Steel Type: 316L
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || IEC 60529, IP66 ||


UPC 78351064430
GTiN 00783510644307
Width 31.38 in
Size 36.00x31.38x8.00 in
Type Disconnect Enclosure with Clamps, Type 4X
Applications For disconnect applications in which a clamp-secured door is preferred, this enclosure features clamps on three sides to keep liquids and contaminants from entering and a preferred cutout that accepts major brand disconnect switches and circuit breakers.Furnished with Enclosure, 1. Bracket welded to door for attaching disconnect door catch (interlock), 2. Instructions to locate and install disconnect switches, circuit breakers and operating mechanisms
Depth 8 in
Height 36 in
Standard 12,CUL Listed Per CSA C22.2 No. 94,Meets NEMA Type 3RX Requirements,NEMA/EEMAC Type 3,Type 3R,IP66,3R,UL 508A Listed,CSA File No. 42186: Type 4,4X,13,IEC 60529,4,File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
